How can I get a price quote for Siemens 7XV5673-0JJ00-2AA1?

You can request a fast quote for Siemens 7XV5673-0JJ00-2AA1 from Yılsa Engineering. Reference part number CEY-8EF3B0380C2E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 7XV5673-0JJ00-2AA1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 7XV5673-0JJ00-2AA1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 7XV5673-0JJ00-2AA1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

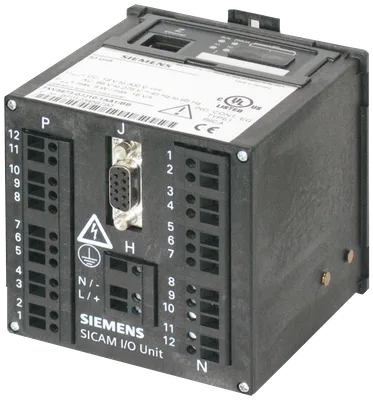

Siemens 7XV5673-0JJ00-2AA1

SICAM I/O Unit with 6 binary inputs and outputs, Use for binary signal transmission or as I/O Add-on of a device, integrated Ethernet switch, Wide range power supply: 24 - 240 V DC, 100 - 230 V AC, for installation on standard mounting rail, Degree of protection IP20, Ethernet interface with Modbus TCP/UDP binary signal transmission or IEC 61850 (GOOSE, MMS, Reporting)

SiemensMFR # 7XV5673-0JJ00-2AA1SKU # CEY-8EF3B0380C2E

sampling frequency / per sampling cycle1 000 Hz

type of data transmission / via CSVYes

supply voltage / at AC100 ... 230 V

supply voltage / at DC24 ... 250 V

type of voltage / of the supply voltageAC/DC

number of digital inputs6

Have questions?Chat on WhatsApp

About This Product

Siemens 7XV5673-0JJ00-2AA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Measuring functions

sampling frequency / per sampling cycle1 000 Hz

File formats

type of data transmission / via CSVYes

Supply voltage

supply voltage / at AC100 ... 230 V

supply voltage / at DC24 ... 250 V

type of voltage / of the supply voltageAC/DC

Inputs / Outputs

number of digital inputs6

number of digital outputs6

Communication

protocol / is supported / IEC 61850Yes

protocol / is supported / Modbus TCPYes

protocol / is supported / Modbus RTUNo

protocol / is supported / Modbus UDPYes

protocol / is supported / SNMPYes

communication function / Modbus RTU as masterNo

number of ports / of the Ethernet interface1

number of ports / maximum / note2 ports for using the 7KE6000-8GD00-0BA2 adaptor

Cybersecurity

service / as web server / HTTPYes

Time synchronization

type of time synchronizationinternal, NTP, Modbus RTU, Modbus TCP

Mechanical Design

width96 mm

height96 mm

depth100 mm

weight550 g

fastening method / DIN-rail mountingYes

type of electrical connectionscrew terminal

connectable conductor cross-section2.5 mm²

Degree of protection / protection class

protection class IP / on the frontIP20

protection class IP / rear sideIP20

Environmental conditions

ambient temperature / during operation-25 ... +70 °C

ambient temperature / during storage-25 ... +70 °C

Approval certification

certificate of suitability / CE markingYes

certificate of suitability / UL approvalYes

Accessories 8

Genuine accessories that can be used with the Siemens 7XV5673-0JJ00-2AA1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
9CA4110-0GE00-0DC1	Aksesuar
9CA4110-0ND00-0DH1	Aksesuar
9CA4110-0NE00-0DH1	Aksesuar
9CA4140-0AD00-0DA8	Aksesuar
9CA4140-0AE00-0DA8	Aksesuar
9CA4160-0WE00-0DA1	Aksesuar
9CA4160-0WE00-0DA2	Aksesuar
9CA4160-0WE00-0DA4	Aksesuar
