How can I get a price quote for Siemens 7PV1508-1BW30?

You can request a fast quote for Siemens 7PV1508-1BW30 from Yılsa Engineering. Reference part number CEY-8EF3B02FD572. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 7PV1508-1BW30 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 7PV1508-1BW30 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 7PV1508-1BW30?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

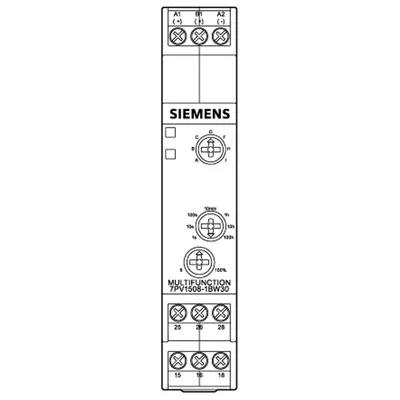

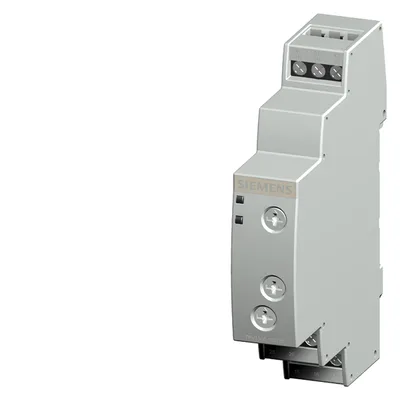

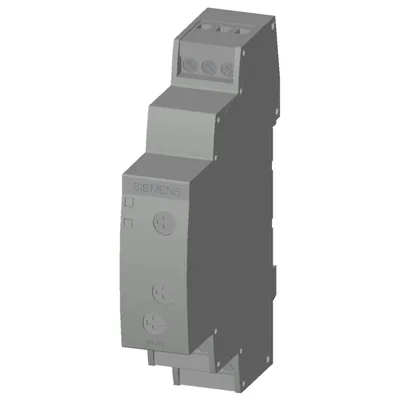

Siemens 7PV1508-1BW30

Timing relay, electronic Multifunction 2 change-over contacts, 7 functions 7 time ranges 0.05 s ... 100 h 12-240 V AC/DC with LED, Screw terminal

SiemensMFR # 7PV1508-1BW30SKU # CEY-8EF3B02FD572

product brand nameSIRIUS

product designationtiming relay

design of the productMultifunctional

product type designation7PV15

product component semi-conductor outputNo

power loss [W] maximum2 W

Have questions?Chat on WhatsApp

About This Product

Timing relay, electronic Multifunction 2 change-over contacts, 7 functions 7 time ranges 0.05 s ... 100 h 12-240 V AC/DC with LED, Screw terminal

Siemens 7PV1508-1BW30

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationtiming relay

design of the productMultifunctional

product type designation7PV15

General technical data

product component semi-conductor outputNo

product extension required remote controlNo

product extension optional remote controlNo

power loss [W] maximum2 W

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

test voltage for isolation test2.2 kV

degree of pollution2

surge voltage resistance rated value4 000 V

test voltage for surge voltage test4 800 V

shock resistance according to IEC 60068-2-2711 g / 15 ms

vibration resistance according to IEC 60068-2-610 ... 55 Hz: 0.35 mm

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

adjustable time0.05 s ... 100 h

relative setting accuracy relating to full-scale value5 %; +/-

ON period/maximum minimum35 ms

recovery time500 ms

reference code according to IEC 81346-2K

relative repeat accuracy2 %; +/-

influence of the surrounding temperature2% in complete temperature range for the set duration

power supply influence2% in complete voltage range for the set duration

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight82 g

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value12 ... 240 V

at 60 Hz rated value12 ... 240 V

at 50 Hz12 ... 240 V

at 60 Hz12 ... 240 V

control supply voltage frequency 150 ... 60 Hz

control supply voltage at DC rated value12 ... 240 V

control supply voltage 1 at DC12 ... 240 V

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

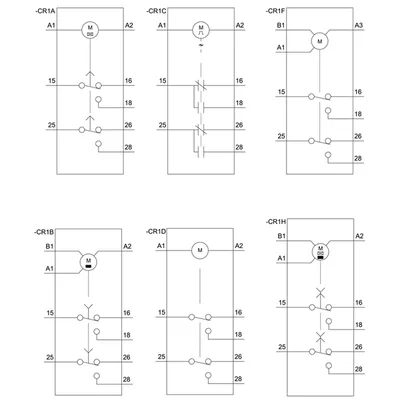

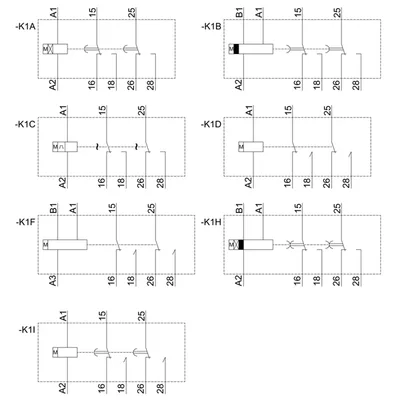

Switching Function

ON-delayYes

ON-delay/instantaneous contactNo

passing make contactYes

passing make contact/instantaneous contactNo

OFF delayNo

flashing symmetrically with interval start/instantaneousNo

flashing symmetrically with interval startYes

flashing symmetrically with pulse start/instantaneousNo

flashing symmetrically with pulse startNo

flashing asymmetrically with interval startNo

flashing asymmetrically with pulse startNo

star-delta circuit with delay timeNo

star-delta circuitNo

additive ON-delayNo

passing break contactNo

passing break contact/instantaneousNo

OFF delayYes

OFF delay/instantaneousNo

pulse delayedYes

pulse delayed/instantaneousNo

pulse-shapingYes

pulse-shaping/instantaneousNo

additive ON-delay/instantaneousNo

ON-delay/OFF-delayYes

ON-delay/OFF-delay/instantaneousNo

passing make contactNo

passing make contact/instantaneous contactNo

retrotriggerable with deactivated control signal/instantaneous contactNo

retrotriggerable with switched-on control signalNo

retrotriggerable with switched-on control signal/instantaneous contactNo

retriggerable with deactivated control signalNo

design of the control terminal non-floatingYes

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 4 A

Auxiliary circuit

material of switching contactsAgSnO2

delayed switching0

instantaneous contact0

delayed switching0

instantaneous contact0

delayed switching2

instantaneous contact0

maximum3 A

at 24 V3 A

at 250 V3 A

at 24 V3 A

at 250 V3 A

at 24 V3 A

at 250 V3 A

operational current of auxiliary contacts at DC-131 ... 0.01

at 24 V1 A

at 125 V0.22 A

at 250 V0.1 A

operating frequency with 3RT2 contactor maximum5 000 1/h

contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (17 V, 5 mA)

contact rating of auxiliary contacts according to ULR150 / B300

switching capacity current with inductive load0.01 ... 3 A

Inputs/ Outputs

at the relay outputs switchover delayed/without delayNo

non-volatileNo

ampacity of the output relay at AC-15 at 250 V at 50/60 Hz3 A

at 24 V1 A

at 125 V0.22 A

Electromagnetic compatibility

EMC immunity according to IEC 61812-1EN 61000-6-2

due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge

Safety related data

category according to EN 954-1none

Electrical Safety

protection class IP on the front according to IEC 60529IP20

type of insulationBasic insulation

Connections/ Terminals

product component removable terminal for auxiliary and control circuitNo

type of electrical connectionscrew terminal

for auxiliary and control circuitscrew-type terminals

solid1x (0.2 ... 2.5 mm²)

finely stranded with core end processing1x (0.25 ... 1.5 mm²)

finely stranded without core end processing1x (0.2 ... 1.5 mm²)

for AWG cables solid1x (24 ... 14)

for AWG cables stranded1x (24 ... 14)

solid0.2 ... 2.5 m²

finely stranded with core end processing0.25 ... 1.5 m²

finely stranded without core end processing0.2 ... 1.5 m²

solid24 ... 14

stranded24 ... 14

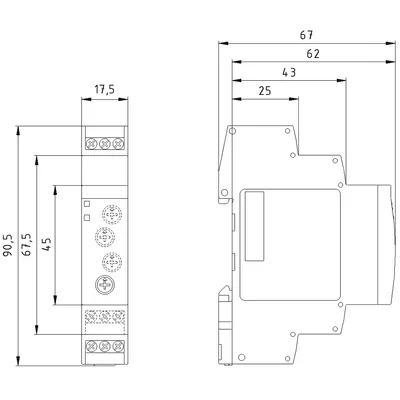

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on fastening on 35 mm DIN rail

height90 mm

width17.5 mm

depth66.7 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +55 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

relative humidity during operation15 ... 85 %

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing1.34 kg

global warming potential [CO2 eq] / during operation21.2 kg

global warming potential [CO2 eq] / after end of life-0.156 kg

global warming potential [CO2 eq] / total22.4 kg
