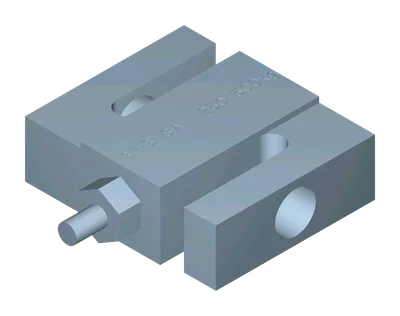

Siemens 7MH5105-3PD01

Load cell SIWAREX WL250 ST-S SA 500kg C3 Ex, strain gauge in s-type / single point design, rated load 500kg, accuracy class C3, cable length 6m, 4 wire, material stainless steel EN 1.4542, degree of protection IP67, with explosion protection

SiemensMFR # 7MH5105-3PD01SKU # CEY-8EF3B0380D44

manufacturer's nameSiemens

product brand nameSIWAREX WL250

product designationWeighing Technology - Load cell

supplier nameSiemens

depth21.41 mm

width50.8 mm

Have questions?Chat on WhatsApp

About This Product

Siemens 7MH5105-3PD01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

manufacturer's nameSiemens

product brand nameSIWAREX WL250

product designationWeighing Technology - Load cell

supplier nameSiemens

marketing text / 1 / as sloganThe right load cell for every application

marketing textSIWAREX load cells from Siemens are designed for use in both static and dynamic weighing systems. They enable high-precision weight detection in platform, hopper, belt, or crane scales as well as in dosing and filling systems. The load cells work on the basis of full-bridge, analog strain gauges (EMS). They cover a wide range of rated loads – from a few kilograms to several tons – and are available in a variety of designs and materials. They are suitable for use in harsh industrial environments and meet degrees of protection up to IP68.

design, dimensions and weights

depth21.41 mm

width50.8 mm

height60.96 mm

net weight0.8 kg

product type designationSIWAREX WL250 load cell

designtensile force / single-point

materialcorrosion-free steel

electrical data

design of the productstrain gauge

design of the interfaceanalog

accuracy classC3

ambient conditions

ambient temperature / during operation / minimum-35 °C

ambient temperature / during operation / maximum65 °C

protection class IPIP67

product feature / explosion-protected designYes

Accessories 8

Genuine accessories that can be used with the Siemens 7MH5105-3PD01 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
7MH3701-1AA1	Aksesuar
7MH4702-8AF	Aksesuar
7MH4710-2AA	Aksesuar · Connection box
7MH4710-5BA	Aksesuar
7MH4710-5CA	Aksesuar
7MH5001-0AA01	Aksesuar · Connection box
7MH5001-0AD01	Aksesuar · Connection box
7MH5705-3PJ10	Aksesuar
