How can I get a price quote for Siemens 7MH5104-2PD01?

You can request a fast quote for Siemens 7MH5104-2PD01 from Yılsa Engineering. Reference part number CEY-8EF3B0380D51. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 7MH5104-2PD01 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 7MH5104-2PD01 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 7MH5104-2PD01?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

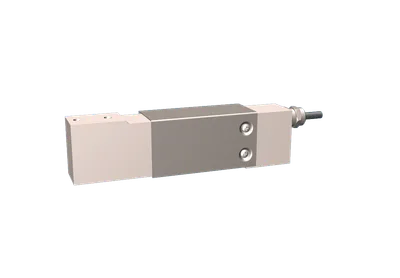

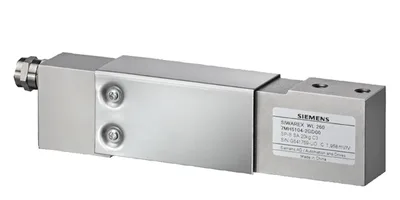

Siemens 7MH5104-2PD01

Load cell SIWAREX WL260 SP-S SA 50kg C3 Ex, strain gauge in platform / single point design, rated load 50kg, accuracy class C3, cable length 1m, 6 wire, material stainless steel EN 1.4542, degree of protection IP67, with explosion protection

SiemensMFR # 7MH5104-2PD01SKU # CEY-8EF3B0380D51

manufacturer's nameSiemens

product brand nameSIWAREX WL260

product designationWeighing Technology - Load cell

supplier nameSiemens

depth25 mm

width150 mm

Have questions?Chat on WhatsApp

About This Product

Siemens 7MH5104-2PD01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

manufacturer's nameSiemens

product brand nameSIWAREX WL260

product designationWeighing Technology - Load cell

supplier nameSiemens

marketing text / 1 / as sloganThe right load cell for every application

marketing textSIWAREX load cells from Siemens are designed for use in both static and dynamic weighing systems. They enable high-precision weight detection in platform, hopper, belt, or crane scales as well as in dosing and filling systems. The load cells work on the basis of full-bridge, analog strain gauges (EMS). They cover a wide range of rated loads – from a few kilograms to several tons – and are available in a variety of designs and materials. They are suitable for use in harsh industrial environments and meet degrees of protection up to IP68.

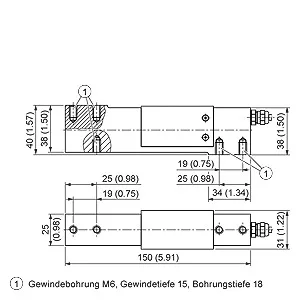

design, dimensions and weights

depth25 mm

width150 mm

height40 mm

net weight1.1 kg

product type designationSIWAREX WL260 load cell

designplatform / single-point

materialcorrosion-free steel

electrical data

design of the productstrain gauge

design of the interfaceanalog

accuracy classC3

ambient conditions

ambient temperature / during operation / minimum-35 °C

ambient temperature / during operation / maximum65 °C

protection class IPIP67

product feature / explosion-protected designYes

Accessories 7

Genuine accessories that can be used with the Siemens 7MH5104-2PD01 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
7MH3701-1AA1	Aksesuar
7MH4702-8AF	Aksesuar
7MH4710-2AA	Aksesuar · Connection box
7MH4710-5BA	Aksesuar
7MH4710-5CA	Aksesuar
7MH5001-0AA01	Aksesuar · Connection box
7MH5001-0AD01	Aksesuar · Connection box
