How can I get a price quote for Siemens 7LF5300-1?

You can request a fast quote for Siemens 7LF5300-1 from Yılsa Engineering. Reference part number YLSGK0HP8CABRDR. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 7LF5300-1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 7LF5300-1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 7LF5300-1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

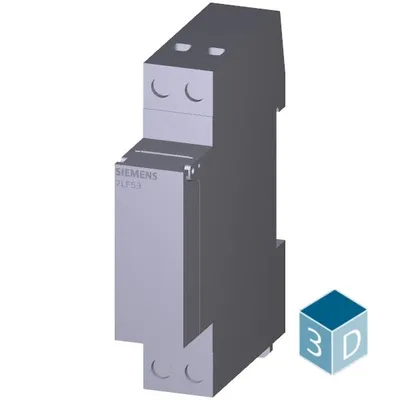

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 7LF5300-1

Synchronous time switch Day 1 NO 230V/50Hz 1 MW

SiemensMFR # 7LF5300-1SKU # YLSGK0HP8CABRDR

product brand nameSENTRON

product designationMechanical time switch

design of the productDay

design of the switching functionNO contact

principle of operation line-synchronousYes

principle of operation quartz-controlledNo

Have questions?Chat on WhatsApp

About This Product

Siemens 7LF5300-1 (Synchronous time switch Day 1 NO 230V/50Hz 1 MW) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 7LF5300-1 — price, stock availability and technical specifications.

Siemens 7LF5300-1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMechanical time switch

design of the productDay

design of the switching functionNO contact

General technical data

principle of operation line-synchronousYes

principle of operation quartz-controlledNo

shortest switching time interval of channel 130 min

Supply voltage

supply voltage initial value230 V

supply voltage full-scale value230 V

type of voltage of the supply voltageAC

minimum50 Hz

maximum50 Hz

Protection class

protection class IPIP20

Breaking Capacity

switching capacity current at AC at 250 V rated value16 A

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole1 W

Product details

product feature floating switching contactYes

Product function

60 min time programNo

automatic daylight-saving adjustmentNo

direct operationYes

annual time programNo

switching preselectionYes

24 hr time programYes

weekly time programNo

Number

number of channels1

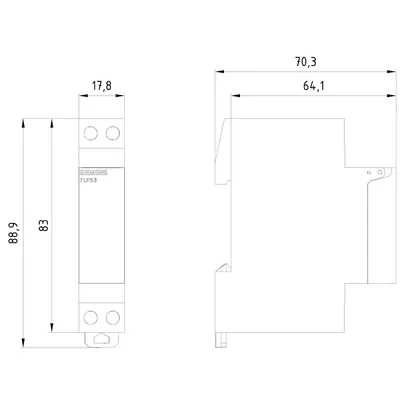

Mechanical Design

height83 mm

width18 mm

depth64 mm

number of modular width units1

fastening methodDIN rail

Net Weight77 g

Accessories 3

Genuine accessories that can be used with the Siemens 7LF5300-1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
