How can I get a price quote for Siemens 7KT0308?

You can request a fast quote for Siemens 7KT0308 from Yılsa Engineering. Reference part number YLS2M5HCQK6T3CM. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 7KT0308 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 7KT0308 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 7KT0308?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

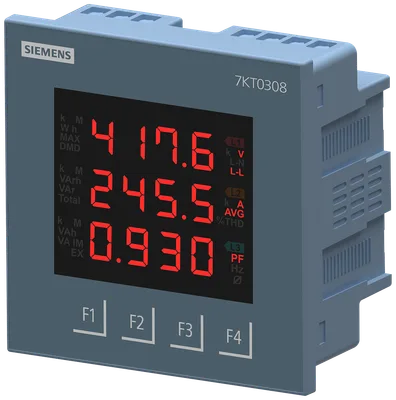

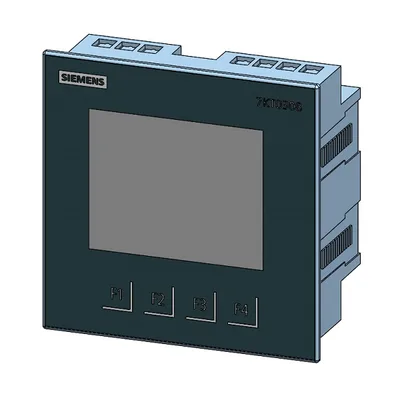

Siemens 7KT0308

Power Monitoring Device Panel instrument for std electrical values Protocol: Modbus RTU Multi line LED Display Vaux: 95V to 240V AC x/1 or 5 A, Class 1

SiemensMFR # 7KT0308SKU # YLS2M5HCQK6T3CM

for voltage measurementTrue RMS

for current measurementTrue RMS

type of measured value detectioncomplete

voltage curveSinusoidal or distorted

initial value45 Hz

full-scale value65 Hz

Have questions?Chat on WhatsApp

About This Product

Power Monitoring Device Panel instrument for std electrical values Protocol: Modbus RTU Multi line LED Display Vaux: 95V to 240V AC x/1 or 5 A, Class 1

Siemens 7KT0308

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Measurements

for voltage measurementTrue RMS

for current measurementTrue RMS

type of measured value detectioncomplete

voltage curveSinusoidal or distorted

initial value45 Hz

full-scale value65 Hz

operating mode for measured value detection automatic line frequency detectionYes

Supply voltage

design of the power supplySMPS power supply

type of voltage of the supply voltageAC

Degree of protection protection class

protection class IP on the frontIP54

protection class IP of the terminalIP20

Suitability

suitability for operationInstallation in stationary panels in closed rooms

Product Functions

voltage measurementYes

current measurementYes

active power measurementYes

reactive power measurementYes

power factor measurementYes

frequency measurementYes

apparent energy/active energy/reactive energyYes

Display and operation

design of the displayLED

height of the display50 mm

width of the display62 mm

color of the background of the displayBlack

national language on the display screen is supportedEN

number of keys4

Communication

transfer rate minimum0.3 kbit/s

transfer rate maximum19.2 kbit/s

Fault limits

reference condition for metering accuracyaccording to IEC61557-12, IEC62053-21, IEC62053-23

for measured variable voltageClass 0.5 acc. to IEC 61557-12

for measured variable currentClass 0.5 acc. to IEC 61557-12

for measured variable apparent powerClass 1 as per IEC 61557-12

for measured variable active powerClass 1 acc. to IEC 61557-12

for measured variable reactive powerClass 2 as per IEC 61557-12

for measured variable output factorClass 1 as per IEC 61557-12

for measured variable active energyClass 1 according to IEC 61557-12 and IEC62053-21

for measured variable reactive energyClass 2 as per IEC 61557-12 and IEC 62053-23

for measured variable THDClass 3 as per IEC 61557-12

Inputs Outputs

number of digital inputs1

type of electrical connection at the digital inputsscrew-type terminals

operating conditions for digital inputs external voltage supplyYes

input voltage at digital input at DC maximum30 V

input current at digital input initial value for signal<1>-recognition10 mA

Measuring inputs

measurable supply voltage between (PE)N and L at AC maximum rated value240 V

minimum11 V

maximum300 V

measurable supply voltage between the line conductors at AC maximum rated value415 V

minimum19 V

maximum519 V

voltage measuring range extension with external voltage transformersYes

line conductors and neutral conductors internal resistance for voltage measurement1.12 MΩ

measuring category for voltage measurementCAT III

1 at AC rated value1 A

2 at AC rated value5 A

minimum1 %

maximum120 %

current measuring range extension with external current transformersYes

apparent power consumption for current measurement with measuring range 5 A per phase3 V·A

measuring category for current measurementCAT III

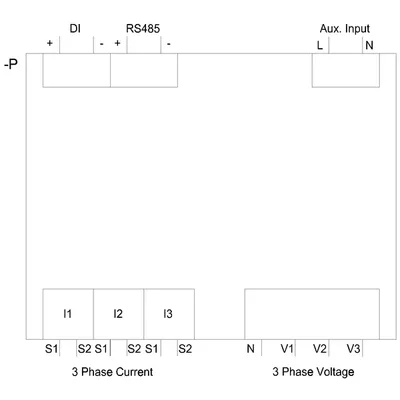

Connections

at the measurement inputs for voltagescrew-type terminals

at the measurement inputs for currentscrew-type terminals

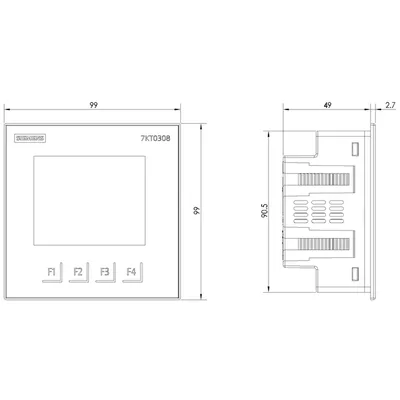

Mechanical Design

fastening method DIN-rail mountingNo

size of Power Monitoring Devicesize 96

height99 mm

width99 mm

depth52 mm

installation depth49 mm

cutout height92 mm

cutout width92 mm

mounting positionVertical

Environmental conditions

minimum-10 °C

maximum55 °C

minimum-20 °C

maximum75 °C

relative humidity at 25 °C without condensation during operation maximum85 %

installation altitude at height above sea level maximum2 000 m

degree of pollution2
