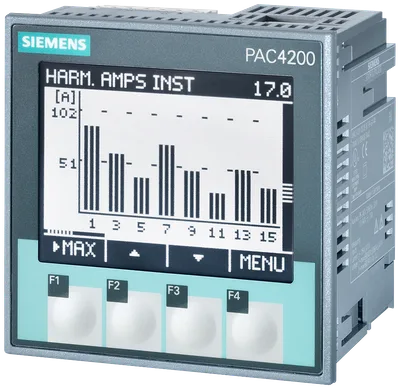

Siemens 7KM4212-0BA00-3AA0

SENTRON, measuring device, 7KM PAC4200, LCD, L-L: 690 V, L-N: 400 V, 5 A, 3-phase, Modbus TCP, optionally Modbus RTU / PROFINET / PROFIBUS / DI/DQ, apparent / active / reactive energy / cos phi, harmonics: 2nd - 64th, THD, Class 0.2 acc. to IEC 61557-12 or Class 0.2 s acc. to IEC 62053-22, wide-range power supply 95 to 240 V +-10% (AC), 110 to 340 V +-10% (DC) screw terminals

SiemensMFR # 7KM4212-0BA00-3AA0SKU # CEY-937FC77CB4B9

product brand nameSENTRON

design of the productcompact

product type designation7KM PAC4200

for voltage measurementTRMS

for current measurementTRMS

type of measured value detectioncomplete

Have questions?Chat on WhatsApp

About This Product

Siemens 7KM4212-0BA00-3AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMeasuring device for power system quality measurement

design of the productcompact

product type designation7KM PAC4200

Measurements

for voltage measurementTRMS

for current measurementTRMS

type of measured value detectioncomplete

voltage curveSinusoidal or distorted

initial value45 Hz

full-scale value65 Hz

operating mode for measured value detection automatic line frequency detectionYes

set at 50 HzNo

set to 60 HzNo

Supply voltage

design of the power supplyWide-range power supply

type of voltage of the supply voltageAC/DC

supply voltage at AC95 ... 240 V

supply voltage at DC110 ... 340 V

Degree of protection protection class

protection class IP on the frontIP65

operating resource protection class when installedII

Suitability

suitability for operationInstallation in stationary panels in closed rooms

Product Functions

voltage measurementYes

current measurementYes

active power measurementYes

reactive power measurementYes

frequency measurementYes

Display and operation

design of the displayLCD

height of the display54 mm

width of the display72 mm

color of the background of the displaywhite

illuminance of display backlight adjustableYes

time-controlled reduction of the illuminance of display backlight possibleYes

display contrast adjustableYes

national language on the display screen is supportedger, en, fr, spa, ita, por, tur, rus, chi, pol

number of keys4

Communication

transfer rate minimum10 000 kbit/s

transfer rate maximum100 000 kbit/s

number of interfaces according to Fast Ethernet1

type of electrical connection of the fast Ethernet interfaceRJ45 (8P8C)

protocol at the Ethernet interface is supportedMODBUS TCP

transfer rate 1 for Ethernet10 Mbit/s

transfer rate 2 for Ethernet100 Mbit/s

Fault limits

reference condition for metering accuracyaccording to IEC61557-12

for measured variable voltage+/- 0.2 %

for measured variable current+/- 0.2 %

for measured variable output factor+/- 2 %

for measured variable active energyClass 0.2 according to IEC61557-12 and/or class 0.2S according to IEC62053-22

for measured variable reactive energyClass 2 according to IEC61557-12 and/or IEC62053-23

for measured variable THD+/- 2 %

Inputs Outputs

number of digital inputs2

type of electrical connection at the digital inputsscrew-type terminals

operating conditions for digital inputs external voltage supplyYes

input voltage at digital input at DC maximum30 V

number of digital outputs2

type of switching outputsolid state

digital output versionswitching or pulse output function

operating voltage as output voltage at DC maximum permissible30 V

type of electrical connection at the digital outputsscrew-type terminals

at digital output with signal <0> maximum0.2 mA

at digital output for signal <1> maximum27 mA

at the digital outputs at DC limited to 100 ms maximum300 mA

internal resistance at the digital outputs55 Ω

standard for pulse emitteraccording to IEC62053-31

initial value30 ms

full-scale value500 ms

adjustable time period minimum10 ms

switching frequency at digital output maximum20 Hz

property of the output short-circuit proofYes

measuring category for digital signalsCATI

Measuring inputs

measurable supply voltage between (PE)N and L at AC maximum rated value400 V

minimum11.5 V

maximum480 V

measurable supply voltage between the line conductors at AC maximum rated value690 V

minimum20 V

maximum828 V

voltage measuring range extension with external voltage transformersyes

line conductors and neutral conductors internal resistance for voltage measurement1.05 MΩ

measuring category for voltage measurementCAT III

1 at AC rated value1 A

2 at AC rated value5 A

minimum10 %

maximum120 %

current measuring range extension with external current transformersYes

zero point suppression for current measurement0 ... 10 %

with measuring range 1 A per phase4 mVA

with measuring range 5 A per phase0.115 V·A

measuring category for current measurementCATIII

Connections

at the measurement inputs for voltage solid1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)

at the measurement inputs for voltage finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)

at the measurement inputs for voltage for AWG cables solid2x 20 to 14

at the measurement inputs for current solid1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)

at the measurement inputs for current finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)

at the measurement inputs for current for AWG cables solid2x 20 to 14

at the measurement inputs for voltagescrew-type terminals

at the measurement inputs for currentscrew-type terminals

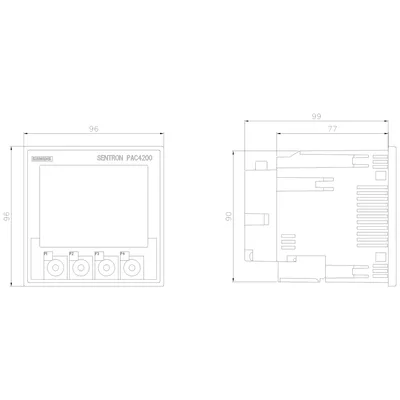

Mechanical Design

fastening method DIN-rail mountingNo

size of Power Monitoring Devicesize 96

height96 mm

width96 mm

depth82 mm

installation depth77 mm

mounting positionvertical

Environmental conditions

minimum-10 °C

maximum55 °C

minimum-25 °C

maximum70 °C

relative humidity at 25 °C without condensation during operation maximum95 %

installation altitude at height above sea level maximum2 000 m

degree of pollution2

Certificates

certificate of suitability as EC Declaration of ConformityIEC 61010-1: 2001 (2nd Ed.) with Corr. 1, EN 61010-1: 2001 (2nd Ed.) and DIN EN 61010-1:2002 with "Berichtigung 1"

Accessories 10

Genuine accessories that can be used with the Siemens 7KM4212-0BA00-3AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
7KM9900-0GA00-0AA0	Aksesuar
7KM9900-0XA00-0AA0	Aksesuar
7KM9900-0YA00-0AA0	Aksesuar
7KM9200-0AB00-0AA0	Aksesuar
7KM9200-0AD00-0AA0	Aksesuar
7KM9300-0AB01-0AA0	Aksesuar
7KM9300-0AM00-0AA0	Aksesuar
7KM9300-0AE02-0AA0	Aksesuar
7KM9300-0PP20-0AA0	Aksesuar
7KM9900-0SA00-0AA0	Bileşen
