How can I get a price quote for Siemens 7KM2200-2EA30-1CA1?

You can request a fast quote for Siemens 7KM2200-2EA30-1CA1 from Yılsa Engineering. Reference part number CEY-8EF3B02C423C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 7KM2200-2EA30-1CA1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 7KM2200-2EA30-1CA1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 7KM2200-2EA30-1CA1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

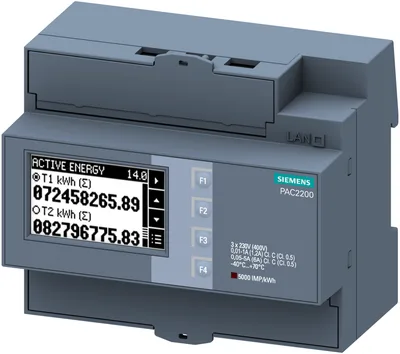

Siemens 7KM2200-2EA30-1CA1

SENTRON, measuring device, 7KM PAC2200, LCD, L-L: 480 V, L-N: 277 V, 5 A, DIN-rail device, 3-phase, M-Bus, apparent / active / reactive energy, with internal power supply, screw terminal

SiemensMFR # 7KM2200-2EA30-1CA1SKU # CEY-8EF3B02C423C

product brand nameSENTRON

product designationEnergy counter

product quality calibratedNo

type of signalS0

design of the energy counterSolid-state

design of the pulse outputElectrical

Have questions?Chat on WhatsApp

About This Product

SENTRON, measuring device, 7KM PAC2200, LCD, L-L: 480 V, L-N: 277 V, 5 A, DIN-rail device, 3-phase, M-Bus, apparent / active / reactive energy, with internal power supply, screw terminal

Siemens 7KM2200-2EA30-1CA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationEnergy counter

product quality calibratedNo

type of measured value detection load profileNo

type of signalS0

design of the energy counterSolid-state

design of the pulse outputElectrical

General technical data

type of the power supply networkthree-wire/four-wire

between L and L minimum3 V

between L and L maximum480 V

between N and L minimum3 V

between N and L maximum276 V

Protection class

protection class IPIP40

Main circuit

minimum45 Hz

maximum65 Hz

operational current rated value5 A

Suitability

suitability for useImport/export

Product function

product functionapparent/active/reactive energy

backstopYes

blocking codeYes

Display and operation

design of the displayLCD

display versiondigital

Communication

protocol is supportedM-Bus

Measuring inputs

between (PE)N and L at AC maximum rated value277 V

between the line conductors at AC maximum rated value480 V

Number

number of characters that can be displayed12

Mechanical Design

number of modular width units6

fastening methodDIN rail device

Net Weight318 g
