How can I get a price quote for Siemens 6XV1875-5TH50?

You can request a fast quote for Siemens 6XV1875-5TH50 from Yılsa Engineering. Reference part number CEY-8EF3B038336E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1875-5TH50 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1875-5TH50 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1875-5TH50?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

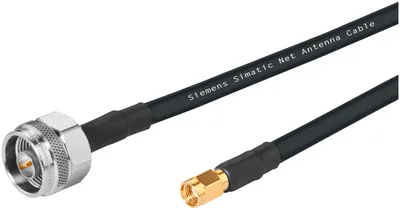

Siemens 6XV1875-5TH50

N-Connect/ R-SMA male/male Flexible connection cable pre-assembled, for Suitable for railway applications; flexible connecting cable e.g. for access point antenna Length: 5 m.

SiemensMFR # 6XV1875-5TH50SKU # CEY-8EF3B038336E

product brand nameSIMATIC NET

wire length5 m

number of electrical connections2

type of electrical connectionN-Connect/R-SMA male/male

transmission frequency0 ... 6000 MHz

at 2.4 GHz / typical0.47 dB/m

Have questions?Chat on WhatsApp

About This Product

N-Connect/ R-SMA male/male Flexible connection cable pre-assembled, for Suitable for railway applications; flexible connecting cable e.g. for access point antenna Length: 5 m.

Siemens 6XV1875-5TH50

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useFlexible connecting cable for connecting an antenna or Rcoax cable to a SCALANCE M/W, suitable for railway applications

wire length5 m

electrical data

number of electrical connections2

type of electrical connectionN-Connect/R-SMA male/male

transmission frequency0 ... 6000 MHz

at 2.4 GHz / typical0.47 dB/m

at 5.2 GHz / typical0.77 dB/m

at 5.85 GHz / typical0.83 dB/m

rated value50 Ω

capacity per length / at 1 kHz80.2 pF/m

relative speed83 %

mechanical data

of inner conductor1.4 mm

of dielectric3.8 mm

of cable sheath5.5 mm

symmetrical tolerance of the outer diameter / of cable sheath0.1 mm

of inner conductorCu, silver plated

of dielectricSPEX

of cable sheathRADOX

of cable sheathBlack

with single bend / minimum permissible25 mm

with multiple bends / minimum permissible90 mm

number of bending cycles50

weight per length47.8 kg/km

ambient conditions

during operation-30 ... +100 °C

during storage-30 ... +100 °C

during transport-30 ... +100 °C

protection class IPIP67; when plugged in

product features, product functions, product components / general

halogen-freeYes

silicon-freeYes

standards, specifications, approvals

certificate of suitabilityfire protection according to NF F 16-101

RoHS conformityYes

fire protection in accordance with EN 45545-2Yes

standard / for fire behavior / smoke emissionEN 61034-2

standard / for fire behavior / flame resistanceEN 60332-1-2, IEC 60332-3-22, EN 50305, 9.1.2; UL AWM style 1354

standard / for fire behavior / toxic gas emissionNF-X 70-100
