How can I get a price quote for Siemens 6XV1870-3RH60?

You can request a fast quote for Siemens 6XV1870-3RH60 from Yılsa Engineering. Reference part number CEY-937FC780254B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1870-3RH60 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1870-3RH60 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1870-3RH60?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

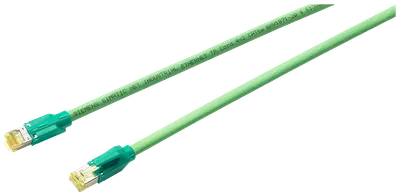

Siemens 6XV1870-3RH60

Industrial Ethernet TP XP cord RJ45/RJ45, CAT 6A, crossed S/FTP cable 4x2, pre-assembled with 2 RJ45 plugs, length 6 m.

SiemensMFR # 6XV1870-3RH60SKU # CEY-937FC780254B

product brand nameSIMATIC NET

cable designationS/FTP, LI 02YSCH 4x2x0,15 PIMF RD FRNC

wire length6 m

number of electrical connections2

at 10 MHz / maximum0.086 dB/m

at 100 MHz / maximum0.28 dB/m

Have questions?Chat on WhatsApp

About This Product

Industrial Ethernet TP XP cord RJ45/RJ45, CAT 6A, crossed S/FTP cable 4x2, pre-assembled with 2 RJ45 plugs, length 6 m.

Siemens 6XV1870-3RH60

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useEasy connection of terminal devices to the IE FC cabling system

cable designationS/FTP, LI 02YSCH 4x2x0,15 PIMF RD FRNC

wire length6 m

electrical data

number of electrical connections2

at 10 MHz / maximum0.086 dB/m

at 100 MHz / maximum0.28 dB/m

at 300 MHz / maximum0.501 dB/m

at 600 MHz / maximum0.735 dB/m

at 1 MHz ... 100 MHz100 Ω

at 10 MHz … 600 MHz100 Ω

of the characteristic impedance at 1 MHz … 100 MHz15 %

of the characteristic impedance at 10 MHz … 600 MHz10 %

transfer impedance per length / at 10 MHz10 mΩ/m

loop resistance per length / maximum290 mΩ/m

RMS value80 V

NVP value in percent80 %

mechanical data

number of electrical cores8

design of the shieldS/FTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires

of AWG26 insulated conductor0.5 mm

of inner conductor0.5 mm

of the wire insulation1 mm

of cable sheath6.2 mm

symmetrical tolerance of the outer diameter / of cable sheath0.3 mm

of the wire insulationpolyethylene (PE)

of cable sheathFRNC

of the insulation of data wireswhite/blue, white/orange, white/green, white/brown

of cable sheathgreen

with single bend / minimum permissible31 mm

with multiple bends / minimum permissible43.5 mm

weight per length50 kg/km

plug

connector typeRJ45

type of plug interlocklatched

design of plug-in connectionRJ45-180

ambient conditions

during operation-25 ... +80 °C

during storage-25 ... +80 °C

during transport-25 ... +80 °C

during installation-25 ... +80 °C

noteIn fixed installation -40 °C to 80 °C

fire behaviorflame resistant according to IEC 60332-1-2, smoke density according to IEC 61034

class of burning behaviour / according to EN 13501-6Eca

to mineral oiloil resistant according to IEC 60811-2-1 (4 h / 70°C)

to greaseConditional resistance

radiological resistance / to UV radiationnot resistant

protection class IPIP20

product features, product functions, product components / general

halogen-freeYes

PoE capabilityYes

PoE+ capabilityYes

PoE++ capabilityYes

silicon-freeYes

at AC / core-to-core500 V

at AC / core shield1500 V

standards, specifications, approvals

UL/ETL listing / 300 V RatingNo

UL/ETL style / 600 V RatingYes; E130266 AWM STYLE 21279

certificate of suitabilityISO/IEC 11801-1, IEC 61035

EAC approvalYes

UL approvalYes

RoHS conformityYes

standard for structured cablingCat6A

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Germanische Lloyd (GL)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No
