How can I get a price quote for Siemens 6XV1870-2J?

You can request a fast quote for Siemens 6XV1870-2J from Yılsa Engineering. Reference part number CEY-8EF3B02F881E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1870-2J in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1870-2J genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1870-2J?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

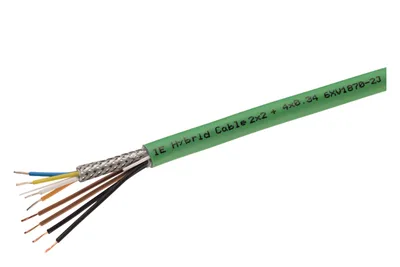

Siemens 6XV1870-2J

Industrial Ethernet Hybrid Cable 2x2+4x 0.34, flexible Cable, 4x CU CAT5, shielded (0.75 mm) and 4x CU (0.34 mm2) for IE FC modular outlet with Power insert and IP67 hybrid plug-in connector Sold by the meter max. delivery unit 1000 m, minimum order quantity 20 m.

SiemensMFR # 6XV1870-2JSKU # CEY-8EF3B02F881E

at 10 MHz / maximum0.075 dB/m

at 100 MHz / maximum0.26 dB/m

at 1 MHz ... 100 MHz100 Ω

loop resistance per length / maximum120 Ω/km

insulation resistance coefficient500 GΩ·m

operating voltage / maximum80 V

Have questions?Chat on WhatsApp

About This Product

Siemens 6XV1870-2J

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

suitability for useEthernet hybrid cable for transfer of data and power

cable designation2YH (ST) C 2x2x0.75/1.5LI LIH H 2x2x0.34/1.6GN FRNC

electrical data

at 10 MHz / maximum0.075 dB/m

at 100 MHz / maximum0.26 dB/m

at 1 MHz ... 100 MHz100 Ω

of the characteristic impedance at 1 MHz … 100 MHz15 %

near-end crosstalk per length / at 1 MHz ... 100 MHz0.353 dB/m

transfer impedance per length / at 10 MHz10 mΩ/m

loop resistance per length / maximum120 Ω/km

insulation resistance coefficient500 GΩ·m

operating voltage / maximum80 V

operating voltage / RMS value100 V

conductor cross section / of the power line0.34 mm²

continuous current / of the power lines5 A

mechanical data

design of the shieldOverlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires

number of electrical cores8

type of electrical connection / FastConnectNo

core diameter / of AWG22 insulated conductor0.76 mm

of inner conductor0.76 mm

of the wire insulation1.5 mm

of the inner sheath of the cable3.9 mm

of cable sheath8.5 mm

symmetrical tolerance of the outer diameter / of cable sheath0.4 mm

of the wire insulationpolyethylene (PE)

of the inner sheath of the cableFRNC

of cable sheathFRNC

of the insulation of data wireswhite / yellow / blue / orange

of the power line insulationBlack/brown

of cable sheathgreen

with single bend / minimum permissible42.5 mm

with multiple bends / minimum permissible85 mm

tensile load / maximum260 N

weight per length105 kg/km

ambient conditions

during operation-25 ... +70 °C

during storage-25 ... +70 °C

during transport-25 ... +70 °C

during installation-25 ... +70 °C

noteElectrical properties measured at 20 Cel, verification according to DIN 47250 part 4 respectively DIN VDE 0490

fire behaviorflame-retardant according to IEC 60332-3-24 (Category C)

class of burning behaviour / according to EN 13501-6Eca

to mineral oilConditional resistance

to greaseConditional resistance

to waterConditional resistance

radiological resistance / to UV radiationresistant

product features, product functions, product components / general

halogen-freeYes

silicon-freeYes

wire length / with 100BaseTX / for Industrial Ethernet100 m

standards, specifications, approvals

UL/ETL listing / 300 V RatingYes; CMG / PLTC / SunRes

UL/ETL style / 600 V RatingYes

EAC approvalYes

RoHS conformityYes

standard for structured cablingCat 5e (data cores), AWG 22 (power cores)
