How can I get a price quote for Siemens 6XV1870-2E?

You can request a fast quote for Siemens 6XV1870-2E from Yılsa Engineering. Reference part number CEY-937FC780ABD0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1870-2E in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1870-2E genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1870-2E?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

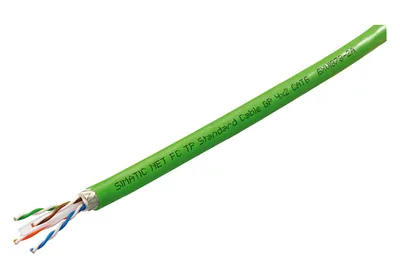

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6XV1870-2E

Industrial Ethernet FC TP standard cable 4x 2, TP installation cable CAT6A for connection to FC RJ45 Modular outlet, AWG22, sold by the meter, delivery unit max. 1000 m minimum order quantity 20 m.

SiemensMFR # 6XV1870-2ESKU # CEY-937FC780ABD0

product brand nameSIMATIC NET

wire lengthsold by the meter

at 10 MHz / maximum0.06 dB/m

at 100 MHz / maximum0.19 dB/m

at 250 MHz / maximum0.33 dB/m

at 1 MHz ... 100 MHz100 Ω

Have questions?Chat on WhatsApp

About This Product

Industrial Ethernet FC TP standard cable 4x 2, TP installation cable CAT6A for connection to FC RJ45 Modular outlet, AWG22, sold by the meter, delivery unit max. 1000 m minimum order quantity 20 m.

Siemens 6XV1870-2E

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useStandard cable with rigid cores for fast, permanent installation

cable designation2YH (ST) C 4X2X0.64/1.25-100 GN 4x2xAWG22

wire lengthsold by the meter

electrical data

at 10 MHz / maximum0.06 dB/m

at 100 MHz / maximum0.19 dB/m

at 250 MHz / maximum0.33 dB/m

at 1 MHz ... 100 MHz100 Ω

of the characteristic impedance at 1 MHz … 100 MHz5 %

at 1 MHz … 250 MHz0.383 dB/m

transfer impedance per length / at 10 MHz10 mΩ/m

loop resistance per length / maximum118 mΩ/m

insulation resistance coefficient5000 GΩ·m

RMS value80 V

NVP value in percent63 %

mechanical data

number of electrical cores8

design of the shieldOverlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires

type of electrical connection / FastConnectYes

of AWG22 insulated conductor0.64 mm

of inner conductor0.64 mm

of the wire insulation1.25 mm

of the inner sheath of the cable7.6 mm

of cable sheath9.6 mm

symmetrical tolerance of the outer diameter / of cable sheath0.3 mm

of the wire insulationpolyethylene (PE)

of the inner sheath of the cablePVC

of cable sheathPVC

of the insulation of data wireswhite/blue, white/orange, white/green, white/brown

of cable sheathgreen

with single bend / minimum permissible38 mm

with multiple bends / minimum permissible80 mm

tensile load / maximum180 N

weight per length117 kg/km

ambient conditions

during operation-40 ... +80 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

during installation-40 ... +80 °C

fire behaviorflame resistant according to IEC 60332-1

class of burning behaviour / according to EN 13501-6Eca

to mineral oiloil resistant according to IEC 60811-2-1 (4 h / 70°C)

to greaseConditional resistance

to waterconditional resistance

radiological resistance / to UV radiationresistant

product features, product functions, product components / general

halogen-freeNo

PoE capabilityYes

PoE+ capabilityYes

silicon-freeYes

with 100BaseTX90 m

with 1000BaseT90 m

at AC / core-to-core2000 V

at AC / core shield2000 V

standards, specifications, approvals

UL/ETL listing / 300 V RatingYes; c(UL)us / CMG / cRU AWM I A/B 60°C 300V FT2 / Sun Res

UL/ETL style / 600 V RatingNo

EAC approvalYes

CE markingYes

RoHS conformityYes

standard for structured cablingCat6A

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Germanische Lloyd (GL)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No
