How can I get a price quote for Siemens 6XV1850-2JN10?

You can request a fast quote for Siemens 6XV1850-2JN10 from Yılsa Engineering. Reference part number CEY-8EF3B03083E7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1850-2JN10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1850-2JN10 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1850-2JN10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6XV1850-2JN10

Industrial Ethernet TP Cord 9/RJ45, TP cord pre-assembled with 1x RJ45 connector and 1x 9-pole ITP connector length 10 m.

SiemensMFR # 6XV1850-2JN10SKU # CEY-8EF3B03083E7

product brand nameSIMATIC NET

cable designationLI 02YSCY 2x2x0,15/0,98 PIMF ICCS GN

wire length10 m

number of electrical connections2

at 10 MHz / maximum0.09 dB/m

at 100 MHz / maximum0.285 dB/m

Have questions?Chat on WhatsApp

About This Product

Industrial Ethernet TP Cord 9/RJ45, TP cord pre-assembled with 1x RJ45 connector and 1x 9-pole ITP connector length 10 m.

Siemens 6XV1850-2JN10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useEasy connection of terminal devices to the IE FC cabling system

cable designationLI 02YSCY 2x2x0,15/0,98 PIMF ICCS GN

wire length10 m

electrical data

number of electrical connections2

at 10 MHz / maximum0.09 dB/m

at 100 MHz / maximum0.285 dB/m

at 300 MHz / maximum0.495 dB/m

at 600 MHz / maximum0.75 dB/m

at 1 MHz ... 100 MHz100 Ω

at 10 MHz … 600 MHz100 Ω

of the characteristic impedance at 1 MHz … 100 MHz15 %

of the characteristic impedance at 10 MHz … 600 MHz6 %

transfer impedance per length / at 10 MHz10 mΩ/m

loop resistance per length / maximum300 mΩ/m

insulation resistance coefficient150 GΩ·m

RMS value80 V

mechanical data

number of electrical cores4

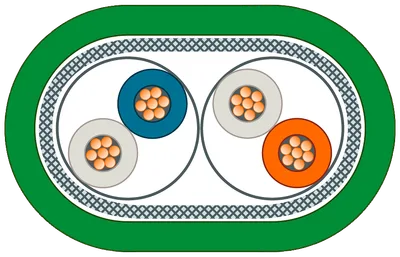

design of the shieldOverlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires

of AWG26 insulated conductor0.48 mm

of inner conductor0.48 mm

of the wire insulation0.98 mm

width / of cable sheath5.8 mm

symmetrical tolerance of width / of cable sheath0.2 mm

thickness / of cable sheath3.7 mm

symmetrical tolerance of thickness / of cable sheath0.2 mm

of the wire insulationpolyethylene (PE)

of cable sheathPVC

of the insulation of data wireswhite/blue, white/orange

of cable sheathgreen

with single bend / minimum permissible24 mm

with multiple bends / minimum permissible42 mm

weight per length32 kg/km

ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

during installation-40 ... +70 °C

fire behaviorflame resistant according to IEC 60332-1

to mineral oiloil resistant according to IEC 60811-2-1 (4 h / 70°C)

to greaseConditional resistance

protection class IPIP20

product features, product functions, product components / general

halogen-freeNo

silicon-freeYes

standards, specifications, approvals

UL/ETL listing / 300 V RatingNo

UL/ETL style / 600 V RatingNo

EAC approvalYes

UL approvalYes

standard for structured cablingCat5

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Germanische Lloyd (GL)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No
