Siemens 6XV1830-8AH10

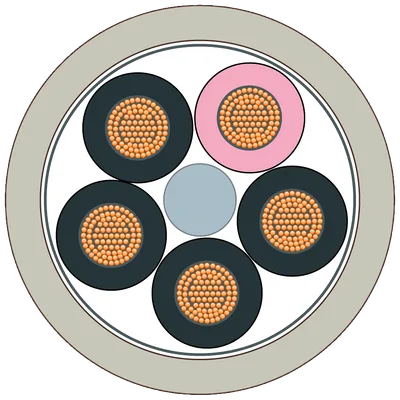

Energy cable, 5-core power line, stranded wire, 5x 1.5 mm2, trailable Delivery unit: max. 1000 m, minimum order quantity 20 m sold by the meter

SiemensMFR # 6XV1830-8AH10SKU # CEY-8EF3B0311B54

product brand nameSIMATIC NET

cable designationL-Y11Y-Z 5x1x1.5 GR

insulation resistance coefficient1 GΩ·m

operating voltage / RMS value600 V

continuous current / of the power lines16 A; at 25°C (14 A at 40°C)

number of electrical cores5

Have questions?Chat on WhatsApp

About This Product

Energy cable, 5-core power line, stranded wire, 5x 1.5 mm2, trailable Delivery unit: max. 1000 m, minimum order quantity 20 m sold by the meter

Siemens 6XV1830-8AH10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for usePower supply of ET 200 modules with 7/8" power port

cable designationL-Y11Y-Z 5x1x1.5 GR

electrical data

insulation resistance coefficient1 GΩ·m

operating voltage / RMS value600 V

conductor cross section / of the power line1.5 mm²

continuous current / of the power lines16 A; at 25°C (14 A at 40°C)

mechanical data

number of electrical cores5

of inner conductor1.55 mm

of the wire insulation2.73 mm

of cable sheath10.5 mm

symmetrical tolerance of the outer diameter / of cable sheath0.3 mm

design of stranding elementNo

conductor class5

of the conductorCU, blank

of the wire insulationPVC

of cable sheathPUR

product component / PE connectionYes

marking / of coresColor, digits

of the power line insulation4x black, 1x pink

of cable sheathgray

with single bend / minimum permissible27 mm

with multiple bends / minimum permissible63 mm

with continuous bending75 mm

number of bending cycles5000000; For use in cable carriers, for 5 million bending cycles with a bending radius of 75 mm, an acceleration of 4 m/s² and a speed of 180 m/min

tensile load / maximum500 N

weight per length149 kg/km

ambient conditions

during operation-40 ... +80 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

during installation-40 ... +80 °C

fire behaviorFlame-resistant acc. to IEC 60332-1

class of burning behaviour / according to EN 13501-6Eca

to mineral oilDIN EN 60811-2-1

to greaseresistant

to waterConditional resistance

radiological resistance / to UV radiationresistant

product features, product functions, product components / general

halogen-freeNo

silicon-freeYes

standards, specifications, approvals

UL/ETL listing / 300 V RatingNo

UL/ETL style / 600 V RatingYes

EAC approvalYes

RoHS conformityYes
