How can I get a price quote for Siemens 6XV1830-0EN50?

You can request a fast quote for Siemens 6XV1830-0EN50 from Yılsa Engineering. Reference part number CEY-8EF3B030B567. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1830-0EN50 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1830-0EN50 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1830-0EN50?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6XV1830-0EN50

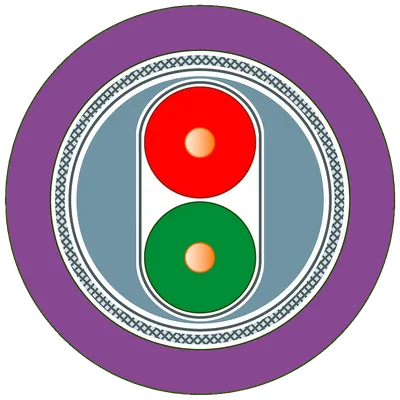

PROFIBUS FC Standard, bus cable 2-wire, shielded, special configuration for Quick assembly 50 m.

SiemensMFR # 6XV1830-0EN50SKU # CEY-8EF3B030B567

product brand nameSIMATIC NET

wire length50 m

at 9.6 kHz / maximum0.0025 dB/m

at 38.4 kHz / maximum0.004 dB/m

at 4 MHz / maximum0.022 dB/m

at 16 MHz / maximum0.042 dB/m

Have questions?Chat on WhatsApp

About This Product

PROFIBUS FC Standard, bus cable 2-wire, shielded, special configuration for Quick assembly 50 m.

Siemens 6XV1830-0EN50

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useStandard cable specially designed for fast, permanent installation

cable designation02YSY (ST) CY 1x2x0,64/2,55-150 VI KF 40 FR

wire length50 m

electrical data

at 9.6 kHz / maximum0.0025 dB/m

at 38.4 kHz / maximum0.004 dB/m

at 4 MHz / maximum0.022 dB/m

at 16 MHz / maximum0.042 dB/m

rated value150 Ω

at 9.6 kHz270 Ω

at 38.4 kHz185 Ω

at 3 MHz … 20 MHz150 Ω

of the characteristic impedance at 9.6 kHz10 %

of the characteristic impedance at 38.4 kHz10 %

of the characteristic impedance at 3 MHz … 20 MHz10 %

loop resistance per length / maximum110 mΩ/m

shield resistance per length / maximum9.5 Ω/km

capacity per length / at 1 kHz28.5 pF/m

RMS value80 V

mechanical data

number of electrical cores2

design of the shieldOverlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires

type of electrical connection / FastConnectYes

of inner conductor0.65 mm

of the wire insulation2.55 mm

of the inner sheath of the cable5.4 mm

of cable sheath8 mm

symmetrical tolerance of the outer diameter / of cable sheath0.4 mm

of the wire insulationpolyethylene (PE)

of the inner sheath of the cablePVC

of cable sheathPVC

of the insulation of data wiresred/green

of cable sheathViolet

with single bend / minimum permissible37.5 mm

with multiple bends / minimum permissible75 mm

tensile load / maximum100 N

weight per length78 kg/km

ambient conditions

during operation-40 ... +75 °C

during storage-40 ... +75 °C

during transport-40 ... +75 °C

during installation-40 ... +75 °C

noteelectrical properties measured at 20 °C

fire behaviorflame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4)

class of burning behaviour / according to EN 13501-6Eca

to mineral oiloil resistant according to IEC 60811-2-1 (4 h / 70°C)

to greaseConditional resistance

to waterconditional resistance

radiological resistance / to UV radiationresistant

product features, product functions, product components / general

halogen-freeNo

silicon-freeYes

standards, specifications, approvals

UL/ETL listing / 300 V RatingYes; c(ETL)us, CMG / (ETL)us CL3 / Sun Res

UL/ETL style / 600 V RatingYes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2

EAC approvalYes

CE markingYes

UL approvalYes

RoHS conformityYes

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Germanische Lloyd (GL)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total0.92 kg

during manufacturing0.8 kg

during operation0.02 kg

after end of life0.1 kg
