How can I get a price quote for Siemens 6XV1821-1BT15?

You can request a fast quote for Siemens 6XV1821-1BT15 from Yılsa Engineering. Reference part number CEY-8EF3B030B56A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1821-1BT15 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1821-1BT15 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1821-1BT15?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

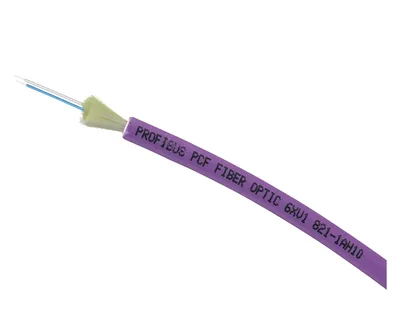

Siemens 6XV1821-1BT15

PROFIBUS PCF Fiber Optic, with 4 PCF BFOC connectors, Length 150 m .

SiemensMFR # 6XV1821-1BT15SKU # CEY-8EF3B030B56A

product brand nameSIMATIC NET

suitability for useCable for indoor applications

version of the assembled FO cableAssembled with four BFOC connectors

cable designationI-V(ZN)Y 2K 200/230

wire length150 m

at 650 nm / maximum10 dB/km

Have questions?Chat on WhatsApp

About This Product

PROFIBUS PCF Fiber Optic, with 4 PCF BFOC connectors, Length 150 m .

Siemens 6XV1821-1BT15

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useCable for indoor applications

version of the assembled FO cableAssembled with four BFOC connectors

cable designationI-V(ZN)Y 2K 200/230

wire length150 m

optical data

at 650 nm / maximum10 dB/km

at 660 nm / maximum10 dB/km

at 650 nm17 GHz·m

mechanical data

number of fibers / per FOC core1

number of FO cores / per FOC cable2

version of the FO conductor fiberStep index fiber 200/230 µm

of the optical fibers200 µm

of the optical fiber sheath230 µm

of the FOC core sheath2.2 mm

symmetrical deviation / of the outer diameter of the FOC core sheath0.1 mm

outer diameter / of the cable4.7 mm

of the fiber-optic cable coreQuartz glass

of the optical fiber sheathFluoridated special polymer

of the FOC core sheathPVC

of the fiber-optic cable sheathPVC

of the strain reliefKevlar fibers

of the FOC core sheathorange/black

of cable sheathViolet

with single bend / minimum permissible47 mm

with multiple bends / minimum permissible70 mm

during installation / short-term800 N

during operation / maximum200 N

short-term shear force per length100 N/cm

weight per length22 kg/km

ambient conditions

during operation-30 ... +70 °C

during storage-30 ... +70 °C

during transport-30 ... +70 °C

during installation-5 ... +50 °C

fire behaviorflame-resistant acc. to IEC 60332-1-2

to mineral oilconditional resistance

to greaseconditional resistance

radiological resistance / to UV radiationnot resistant

protection class IPIP20

product features, product functions, product components / general

halogen-freeNo

silicon-freeYes

product component / rodent protectionNo

for PCF FOC / with PROFIBUS / maximum400 m

standards, specifications, approvals

RoHS conformityYes
