How can I get a price quote for Siemens 6XV1821-0BH50?

You can request a fast quote for Siemens 6XV1821-0BH50 from Yılsa Engineering. Reference part number CEY-8EF3B030B56B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1821-0BH50 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1821-0BH50 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1821-0BH50?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

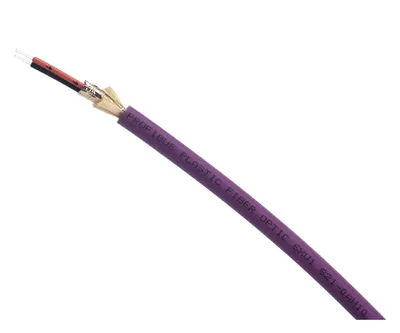

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6XV1821-0BH50

PROFIBUS Plastic Fiber Optic, Standard cable with 4 BFOC connectors, length 5 m.

SiemensMFR # 6XV1821-0BH50SKU # CEY-8EF3B030B56B

product brand nameSIMATIC NET

suitability for useCable for indoor applications

version of the assembled FO cableAssembled with four BFOC connectors

cable designationI-V4Y(ZN)Y 2P 980/1000

wire length5 m

at 650 nm / maximum160 dB/km

Have questions?Chat on WhatsApp

About This Product

PROFIBUS Plastic Fiber Optic, Standard cable with 4 BFOC connectors, length 5 m.

Siemens 6XV1821-0BH50

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useCable for indoor applications

version of the assembled FO cableAssembled with four BFOC connectors

cable designationI-V4Y(ZN)Y 2P 980/1000

wire length5 m

optical data

at 650 nm / maximum160 dB/km

at 660 nm / maximum230 dB/km

at 650 nm1 GHz·m

mechanical data

number of fibers / per FOC core1

number of FO cores / per FOC cable2

version of the FO conductor fiberStep index fiber 980/1000 µm

of the optical fibers980 µm

of the optical fiber sheath1000 µm

of the FOC core sheath2.2 mm

symmetrical deviation / of the outer diameter of the FOC core sheath0.1 mm

outer diameter / of the cable7.8 mm

symmetrical deviation / of the outer diameter of the line0.3 mm

of the fiber-optic cable corePolymethylmethacrylate (PMMA)

of the optical fiber sheathFluoridated special polymer

of the FOC core sheathPA

of the fiber-optic cable sheathPVC

of the strain reliefKevlar fibers

of the FOC core sheathorange/black

of cable sheathViolet

with single bend / minimum permissible100 mm

with multiple bends / minimum permissible150 mm

during installation / short-term100 N

during operation / maximum100 N

short-term shear force per length100 N/cm

weight per length65 kg/km

ambient conditions

during operation-30 ... +70 °C

during storage-30 ... +70 °C

during transport-30 ... +70 °C

during installation50 °C

fire behaviorflame-resistant acc. to IEC 60332-1-2

to mineral oilconditional resistance

to greaseconditional resistance

radiological resistance / to UV radiationnot resistant

protection class IPIP20

product features, product functions, product components / general

halogen-freeNo

silicon-freeYes

product component / rodent protectionNo

for POF FOC / with PROFIBUS / maximum80 m

standards, specifications, approvals

UL approvalYes; (UL) OFN

RoHS conformityYes
