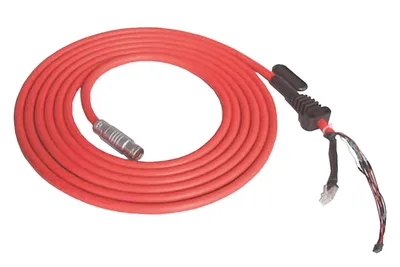

Siemens 6XV1440-4AN25

connection cable DP for Mobile Panels (MPI/PROFIBUS), length: 25 m, scope of supply: 1 connection cable

SiemensMFR # 6XV1440-4AN25SKU # CEY-8EF3B02FD57E

Product type designationMPI/DP connecting cable

Rated value (DC)24 V; DC

IP (at the front)IP65

IP (rear)IP65

CE markYes

min.0 °C

Have questions?Chat on WhatsApp

About This Product

connection cable DP for Mobile Panels (MPI/PROFIBUS), length: 25 m, scope of supply: 1 connection cable

Siemens 6XV1440-4AN25

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationMPI/DP connecting cable

Supply voltage

Rated value (DC)24 V; DC

Degree and class of protection

IP (at the front)IP65

IP (rear)IP65

Standards, approvals, certificates

CE markYes

Suitable for safety functionsYes; e.g. emergency stop, acknowledgment button

Ambient temperature during operation

min.0 °C

max.55 °C

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Relative humidity

Operation, max.85 %

Cables

Cable length25 m

smallest bending radius45 mm

Color of cable sheathred

Oil resistance of outer sheathYes; Hydrolysis-resistant and oil-resistant acc. to VDE 0472 Part 803/B, also resistant to commercially available lubricants and hydraulic oils

Resistance to MEK, xylene, toluene, isopropanolYes

Mechanics/material

Material of cable sheathSpecial PUR, flame-resistant acc. to VDE 0472 Part 804 Test Type B, Shore A 88 Flame-Retardant UR Style 20963

Dimensions

Thickness9 mm

Scope of supply

Delivery quantity in pieces1

Other

MerchandiseNo

Manufacturer nameSIEMENS AG

Manufacturer's addressGleiwitzerstraße 555, 90475 Nuremberg, Germany

contacting the manufacturerEmail: simatic_hmi_panel_helpdesk.i-ia@siemens.com
