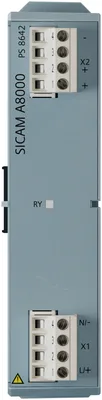

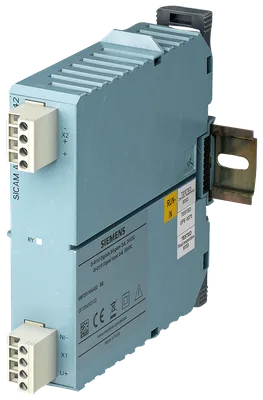

Siemens 6MF2864-2AA00

PS-8642 POWER SUPPLY 110-220VDC or 230VAC 45W

SiemensMFR # 6MF2864-2AA00SKU # YLSIQBGNNT4CQW

surge voltage / rated value4 kV

supply voltage / at AC85 ... 264 V

supply voltage / at DC82.5 ... 286 V

type of voltage / of the supply voltageAC / DC

width30 mm

height132 mm

Have questions?Chat on WhatsApp

About This Product

Siemens 6MF2864-2AA00 (PS-8642 POWER SUPPLY 110-220VDC or 230VAC 45W) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 6MF2864-2AA00 — price, stock availability and technical specifications.

Siemens 6MF2864-2AA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General technical data

surge voltage / rated value4 kV

consumed active power / of the module / maximum55.5 mW

supplied active power / of the voltage output for external devices / maximum45 W

output voltage / of the internal bus voltage 15.15 V

supplied active power / of internal output 1 / maximum10 W

output voltage / of the internal bus voltage 228 V

supplied active power / of internal output 245 W

output voltage / of the internal bus voltage 324 V

supplied active power / of internal output 3 / maximum10 W

supplied active power (total) / of power supply unit / maximum45 W

Supply voltage

supply voltage / at AC85 ... 264 V

supply voltage / at DC82.5 ... 286 V

type of voltage / of the supply voltageAC / DC

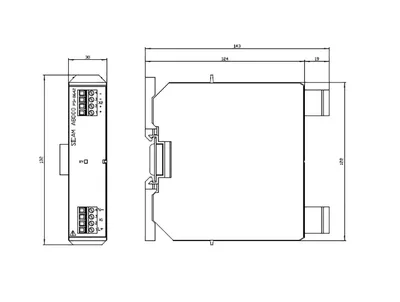

Mechanical Design

width30 mm

height132 mm

depth124 mm

product feature / conformal coatingNo

fastening method / DIN-rail mountingYes

fastening method / wall mountingNo

fastening method / rack mountingNo

type of electrical connectionscrew terminal

connectable conductor cross-section0.33 ... 2.5 mm²

material / of the enclosureplastic

product function / with function displayYes

product function / status displayYes

Degree of protection / protection class

operating resource protection classII

degree of pollution2

protection class IP / on the frontIP 40

Environmental conditions

ambient temperature / during operation-40 ... +70 °C

ambient temperature / during storage-30 ... +85 °C

relative humidity5 ... 95 %

mounting height in relation to mean sea level / maximum3 000 m

air pressure / maximum106 kPa

Approval certification

certificate of suitability / CE markingYes

certificate of suitability / UL approvalYes
