How can I get a price quote for Siemens 6MF2853-2AA00?

You can request a fast quote for Siemens 6MF2853-2AA00 from Yılsa Engineering. Reference part number YLSQD8GHNC0N1YZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6MF2853-2AA00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6MF2853-2AA00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6MF2853-2AA00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

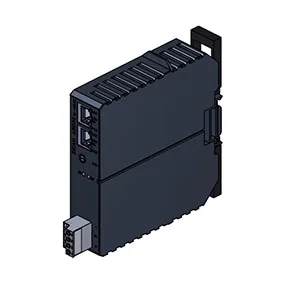

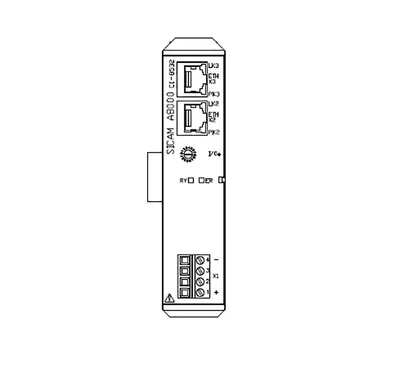

Siemens 6MF2853-2AA00

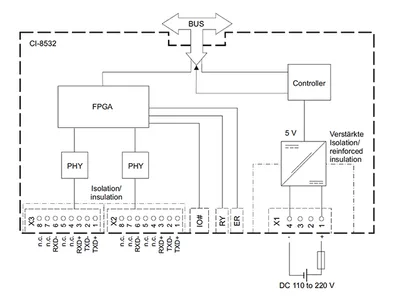

CI-8532 module is a Ethernet communication interface module for remote I/Os of the SICAM A8000 CP-8050. It is used for coupling remote I/O rows. Ring, star and daisy chain configurations are supported. The integrated power supply (110-220VDC) is supporting up to 8 I/O. modules. Optional, redundant power (PS-862x, PS-864x) supplies are supported.

SiemensMFR # 6MF2853-2AA00SKU # YLSQD8GHNC0N1YZ

surge voltage / rated value4 kV

design of the productcommunication module

supply voltage / at DC82.5 ... 286 V

type of voltage / of the supply voltageDC

number of optical interfaces0

number of interfaces / serial0

Have questions?Chat on WhatsApp

About This Product

Siemens 6MF2853-2AA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General technical data

consumed active power / rated value / maximum7 000 mW

surge voltage / rated value4 kV

Model

design of the productcommunication module

Supply voltage

supply voltage / at DC82.5 ... 286 V

type of voltage / of the supply voltageDC

Communication

number of ports / of the Ethernet interface2

number of optical interfaces0

number of interfaces / serial0

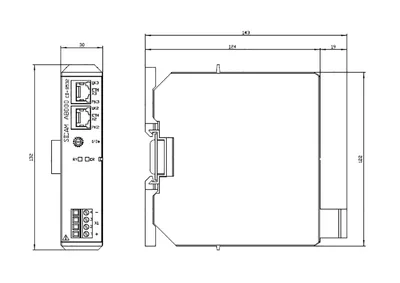

Mechanical Design

width30 mm

height132 mm

depth124 mm

product feature / conformal coatingNo

fastening method / DIN-rail mountingYes

fastening method / wall mountingNo

fastening method / rack mountingNo

material / of the enclosureplastic

product function / with function displayYes

product function / status displayYes

Degree of protection / protection class

operating resource protection classII

degree of pollution2

protection class IP / on the frontIP40

Environmental conditions

ambient temperature / during operation-40 ... +70 °C

ambient temperature / during storage-30 ... +85 °C

relative humidity5 ... 95 %

mounting height in relation to mean sea level / maximum3 000 m

air pressure / maximum106 kPa

Approval certification

certificate of suitability / CE markingYes

certificate of suitability / UL approvalYes
