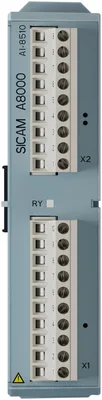

Siemens 6MF2851-0AA00

Returns only via RMA Tool, otherwise 350€ administration fee will be charged.

SiemensMFR # 6MF2851-0AA00SKU # CEY-8EF3B0385AC9

surge voltage / rated value2 kV

number of analog inputs6

design of analog input / configurableYes

A/D resolution / at the analog input16 bit

width30 mm

height132 mm

Have questions?Chat on WhatsApp

About This Product

Returns only via RMA Tool, otherwise 350€ administration fee will be charged.

Siemens 6MF2851-0AA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General technical data

consumed active power / rated value / maximum800 mW

surge voltage / rated value2 kV

Inputs / Outputs

number of analog inputs6

design of analog input / configurableYes

A/D resolution / at the analog input16 bit

input variable / at the analog input / current signalYes

input variable / at the analog input / voltageYes

output quantity / at analog output / current signalNo

output quantity / at analog output / voltageNo

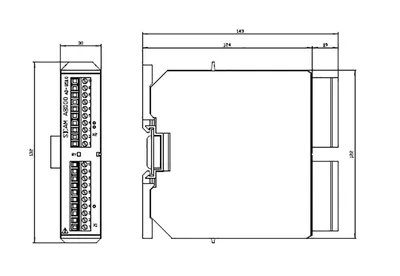

Mechanical Design

width30 mm

height132 mm

depth124 mm

product feature / conformal coatingNo

fastening method / DIN-rail mountingYes

fastening method / wall mountingNo

fastening method / rack mountingNo

type of electrical connectionscrew connection

connectable conductor cross-section0.33 ... 2.5 mm²

material / of the enclosureplastic

product feature / plug-in terminal blocksYes

product function / with function displayYes

product function / status displayNo

Degree of protection / protection class

operating resource protection classII

degree of pollution2

protection class IP / on the frontIP40

Environmental conditions

ambient temperature / during operation-40 ... +70 °C

ambient temperature / during storage-30 ... +85 °C

relative humidity5 ... 95 %

mounting height in relation to mean sea level / maximum3 000 m

air pressure / maximum106 kPa

Approval certification

certificate of suitability / CE markingYes

Accessories 8

Genuine accessories that can be used with the Siemens 6MF2851-0AA00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
9CA4110-0GE00-0DC1	Aksesuar
9CA4110-0ND00-0DH1	Aksesuar
9CA4110-0NE00-0DH1	Aksesuar
9CA4140-0AD00-0DA8	Aksesuar
9CA4140-0AE00-0DA8	Aksesuar
9CA4160-0WE00-0DA1	Aksesuar
9CA4160-0WE00-0DA2	Aksesuar
9CA4160-0WE00-0DA4	Aksesuar
