How can I get a price quote for Siemens 6MF2811-3AA00?

You can request a fast quote for Siemens 6MF2811-3AA00 from Yılsa Engineering. Reference part number CEY-8EF3B0385ACC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6MF2811-3AA00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6MF2811-3AA00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6MF2811-3AA00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6MF2811-3AA00

Returns only via RMA Tool, otherwise 350€ administration fee will be charged.

SiemensMFR # 6MF2811-3AA00SKU # CEY-8EF3B0385ACC

surge voltage / rated value4 kV

surge voltage resistance5 kV

design of the productdigital input module

sampling interval1 ms

supply voltage / at DC / rated value4.75 ... 5.5 V

type of voltage / of the supply voltageDC

Have questions?Chat on WhatsApp

About This Product

Returns only via RMA Tool, otherwise 350€ administration fee will be charged.

Siemens 6MF2811-3AA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General technical data

consumed active power / rated value / maximum130 mW

surge voltage / rated value4 kV

surge voltage resistance5 kV

Model

design of the productdigital input module

Measuring functions

sampling interval1 ms

Supply voltage

supply voltage / at DC / rated value4.75 ... 5.5 V

type of voltage / of the supply voltageDC

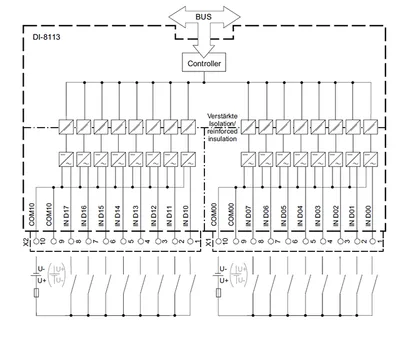

Inputs / Outputs

number of isolated input groups2

number of digital inputs16

input voltage / at DC / per input220 V

input voltage / per input165 ... 253 V

consumed current / per input0.3 ... 0.7 mA

product feature / galvanic isolation of the inputsYes

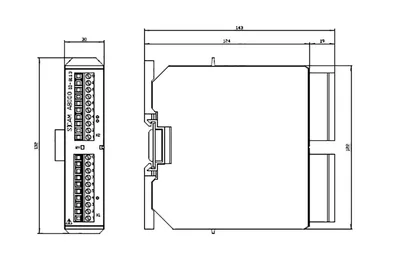

Mechanical Design

width30 mm

height132 mm

depth124 mm

product feature / conformal coatingNo

fastening method / DIN-rail mountingYes

fastening method / wall mountingNo

fastening method / rack mountingNo

type of electrical connectionscrew terminal

connectable conductor cross-section0.33 ... 2.5 mm²

product feature / plug-in terminal blocksYes

product function / with function displayYes

product function / status displayNo

Degree of protection / protection class

operating resource protection classII

degree of pollution2

protection class IP / on the frontIP40

Environmental conditions

ambient temperature / during operation-40 ... +70 °C

ambient temperature / during storage-30 ... +85 °C

relative humidity5 ... 95 %

air pressure / maximum106 kPa

Approval certification

certificate of suitability / CE markingYes

certificate of suitability / UL approvalYes

Accessories 8

Genuine accessories that can be used with the Siemens 6MF2811-3AA00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
9CA4110-0GE00-0DC1	Aksesuar
9CA4110-0ND00-0DH1	Aksesuar
9CA4110-0NE00-0DH1	Aksesuar
9CA4140-0AD00-0DA8	Aksesuar
9CA4140-0AE00-0DA8	Aksesuar
9CA4160-0WE00-0DA1	Aksesuar
9CA4160-0WE00-0DA2	Aksesuar
9CA4160-0WE00-0DA4	Aksesuar
