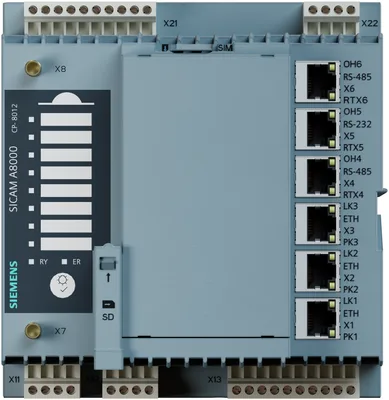

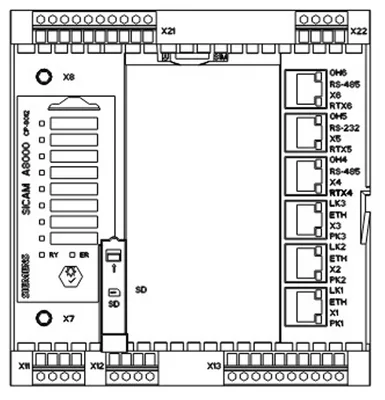

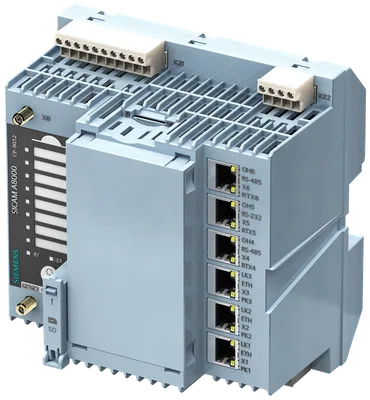

Siemens 6MF2801-2AA00

Returns only via RMA Tool, otherwise 350€ administration fee will be charged. Ethernet and 3x serial interfaces. It has an integrated LTE modem with GPRS fallback and an integrated power supply ranging from 24 to 60 VDC. SICAM A8000 I/O modules can be connected to the right side. There is an integrated wireless module to connect sensors. On the front an additional display module CM-8880 can be inserted. -40 to +70 degree celsius operating temperature.

SiemensMFR # 6MF2801-2AA00SKU # YLSAJUCL8XYODUL

surge voltage / rated value4 kV

surge voltage resistance2.5 kV

number of processor cores2

processor clock frequency800 MHz

storage capacity / of the RAM512 Mbyte

storage capacity / of the flash memory4 Gbyte

Have questions?Chat on WhatsApp

About This Product

Siemens 6MF2801-2AA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General technical data

consumed active power / rated value / maximum14 500 mW

surge voltage / rated value4 kV

surge voltage resistance2.5 kV

number of processor cores2

processor clock frequency800 MHz

storage capacity / of the RAM512 Mbyte

storage capacity / of the flash memory4 Gbyte

product component / hardware real time clockYes

accuracy [ppm] / of the hardware real time clock3.5 ppm

buffer time / of the hardware real time clock / in case of power failure72 h

Product details

time resolution1 ms

number of local IO modules / maximum16

number of allowable IO lines / maximum2

Measuring functions

sampling interval10 ms

Supply voltage

supply voltage / at DC / rated value18 ... 78 V

type of voltage / of the supply voltageDC

Inputs / Outputs

number of isolated input groups1

number of digital inputs8

type of input voltage / at the inputsDC

input voltage / at DC / per input24 ... 60 V

input voltage / per input18 ... 70 V

consumed current / per input0.6 ... 1.5 mA

product feature / galvanic isolation of the inputsYes

number of isolated output groups2

number of digital outputs7

design of the digital outputrelais

type of voltage / at digital outputAC/DC

voltage / at AC / at 50 Hz / per output110 ... 230 V

voltage / at AC / at 60 Hz / per output230 ... 110 V

voltage / at DC / per output24 ... 60 V

voltage / per output18 ... 253 V

consumed current / per output8 000 mA

switching capacity apparent power / at AC / at 50 Hz2 000 V·A

switching capacity apparent power / at AC / at 60 Hz2 000 V·A

switching capacity active power / at DC1 000 W

product function / galvanic isolation of the outputsYes

Communication

protocol / to the substation as client / is supported / IEC 60870-5-104Yes

protocol / to the higher-level station as server / is supported / IEC 60870-5-104Yes

protocol / to the substation as master / is supported / IEC 60870-5-103Yes

protocol / is supported / IEC 60870-5-103 as deviceYes

protocol / to the substation as master / is supported / IEC 60870-5-101Yes

protocol / is supported / IEC 60870-5-101 as deviceYes

protocol / to the substation as client / is supported / IEC 61850Yes

protocol / to the higher-level station as server / is supported / IEC 61850Yes

protocol / at the point-to-point connection / is supported / Modbus RTU as masterYes

protocol / is supported / Modbus RTU deviceYes

protocol / is supported / Modbus TCP as clientYes

protocol / is supported / Modbus TCP as serverYes

protocol / is supported / DNP 3.0 serial as masterYes

protocol / is supported / DNP 3.0 serial as deviceYes

protocol / is supported / DNP 3.0 TCP as clientYes

protocol / is supported / DNP 3.0 TCP as serverYes

protocol / is supported / PROFIBUS DP as masterYes

protocol / is supported / PROFINET as masterYes

type of mobile wireless service / is supported / GPRSYes

number of protocols / for standard application / maximum4

number of protocols / through firmware expansion4

number of ports / of the Ethernet interface3

number of interfaces / serial3

supply voltage / via serial interfacesYes

Cybersecurity

type of communication security / Secure 104 according to IEC 62351-3Yes

type of access control / role-based access control (RBAC)Yes

type of system monitoring / according to SNMPYes

product function / logging via Security EventlogYes

service / as web server / HTTPSYes

product function / firmware identifierYes

Time synchronization

time synchronization / via telecontrol protocolYes

time synchronization / via NTP/SNTPYes

time synchronization / via IRIG-BYes

product feature / time synchronization via IEEE 1588Yes

Mechanical Design

width153.5 mm

height160 mm

depth124 mm

product feature / conformal coatingNo

fastening method / DIN-rail mountingYes

fastening method / wall mountingNo

fastening method / rack mountingNo

type of electrical connectionscrew terminal

connectable conductor cross-section0.2 ... 2.5 mm²

material / of the enclosureplastic

product feature / plug-in terminal blocksYes

product function / with function displayYes

product function / status displayYes

Degree of protection / protection class

operating resource protection classII

degree of pollution2

protection class IP / on the frontIP20

Environmental conditions

ambient temperature / during operation-40 ... +70 °C

ambient temperature / during storage-40 ... +85 °C

relative humidity5 ... 95 %

mounting height in relation to mean sea level / maximum3 000 m

air pressure / maximum106 kPa

Approval certification

certificate of suitability / CE markingYes

certificate of suitability / UL approvalNo
