Siemens 6GT2891-4FN10

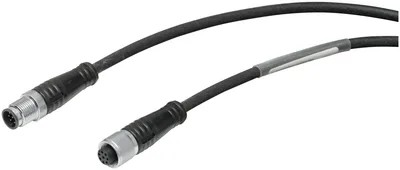

SIMATIC RF, MV connecting cable, pre-assembled, between ASM 456, RF160C, RF170C, RF18XC, RF182C and reader, or as extension cable for ASM 456, RF160C, RF170C, RF18XC with RF, MV, MOBY PUR, trailing, length 10 m.

SiemensMFR # 6GT2891-4FN10SKU # CEY-8EF3B02F442B

product brand nameSIMATIC RF

cable designationL-YC11Y 6x1x0.25 6x24AWG CM

wire length10 m

number of electrical connections2

loop resistance per length / maximum160 mΩ/m

insulation resistance coefficient20 GΩ·m

Have questions?Chat on WhatsApp

About This Product

Siemens 6GT2891-4FN10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

suitability for usePlug-in or extension cable for connecting a reader to a communication module

cable designationL-YC11Y 6x1x0.25 6x24AWG CM

wire length10 m

electrical data

number of electrical connections2

type of electrical connectionM12 (male, 8 pin, straight) / M12 (female, 8 pin, straight)

loop resistance per length / maximum160 mΩ/m

insulation resistance coefficient20 GΩ·m

maximum300 V

mechanical data

number of electrical cores6

design of the shieldBraided shield made of tin-plated copper wires

of cable sheath5.4 mm

symmetrical tolerance of the outer diameter / of cable sheath0.2 mm

of the wire insulationPVC

of cable sheathPUR

of the insulation of data wiresDIN 47100

of cable sheathBlack

with single bend / minimum permissible21.6 mm

with multiple bends / minimum permissible43 mm

with continuous bending75 mm

number of bending cycles3000000

tensile load / maximum200 N

weight per length45 kg/km

ambient conditions

during operation-30 ... +80 °C

during storage-30 ... +80 °C

during transport-30 ... +80 °C

during installation-30 ... +80 °C

fire behaviorflame resistant according to IEC 60332-1-2

class of burning behaviour / according to EN 13501-6Eca

to mineral oilresistant

to greaseresistant

radiological resistance / to UV radiationresistant

product features, product functions, product components / general

halogen-freeNo

silicon-freeYes

standards, specifications, approvals

UL/ETL listing / 300 V RatingYes; CM (only cable without plug)

EAC approvalYes
