Siemens
6GF3326-0HT01
MFR #6GF3326-0HT01
SKU #YLSQNBXRUOOGWDE
Photo may not represent actual item. Refer to name and product specs for all details.
Siemens 6GT2812-2GB08
SIMATIC RF600 antenna RF680A Linear or circular can be selected frequency range 865 to 928 MHz Broadband dimensions 198x 198x 60 mm (LxWxH) IP65, -25 to +75 °C.
product brand nameSIMATIC RF
suitability for operationSIMATIC RF600
transmission frequency865 ... 928 MHz
with linear radiation3.5 dB
with circular radiation3.5 dB
impedance50 Ω
About This Product

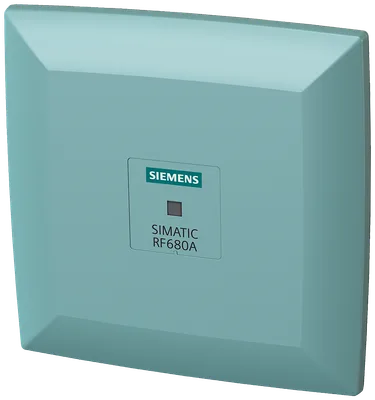

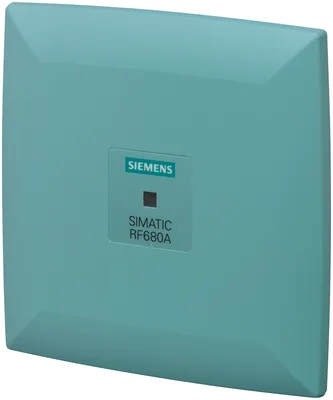

SIMATIC RF600 antenna RF680A Linear or circular can be selected frequency range 865 to 928 MHz Broadband dimensions 198x 198x 60 mm (LxWxH) IP65, -25 to +75 °C.
Siemens 6GT2812-2GB08
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSIMATIC RF
suitability for operationSIMATIC RF600
radio frequencies
transmission frequency865 ... 928 MHz
electrical data
with linear radiation3.5 dB
with circular radiation3.5 dB
impedance50 Ω
polarizationLinear (h/v), circular, combined
standing wave ratio (VSWR) / maximum1.45
horizontal90°
vertical77°
type of electrical connection / of the antennaRP-TNC
design of plug-in connectionmale
mechanical data
materialPocan
colorPastel turquoise
tightening torque / of the screw for securing the equipment / maximum2 N·m
relating to metal surfaces / recommended / minimum0 m
ambient conditions
during operation-25 ... +75 °C
during storage-40 ... +85 °C
during transport-40 ... +85 °C
protection class IPIP65
shock acceleration300 m/s²
vibrational acceleration100 m/s²

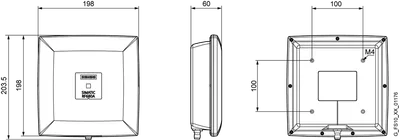

design, dimensions and weights
width198 mm
height198 mm
depth60 mm
net weight690 g
fastening method4 screws M4 according to VESA 100, optional with articulated bracket by using antenna mounting kit
wire length / of antenna cable0 m
product features, product functions, product components / general
product feature / silicon-freeYes
standards, specifications, approvals
certificate of suitabilityCE (according to R&TTE), FCC (Title 47, Part 15.247), cULus
IECExNo
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
accessories
accessoriesAntenna cables 1 to 40 m
