How can I get a price quote for Siemens 6GT2812-1GA08?

You can request a fast quote for Siemens 6GT2812-1GA08 from Yılsa Engineering. Reference part number CEY-937FC77F210E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GT2812-1GA08 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GT2812-1GA08 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GT2812-1GA08?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6GT2812-1GA08

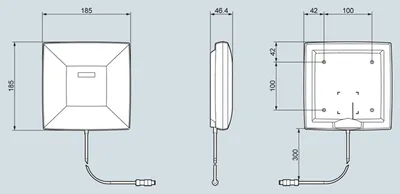

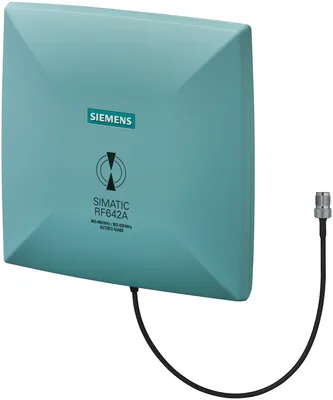

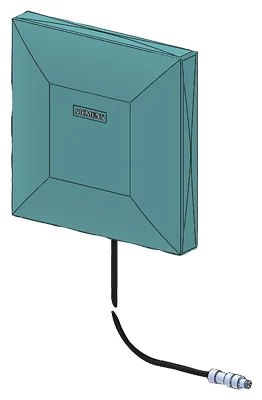

SIMATIC RF600 antenna RF642A linear (broadband) frequency range 865 to 928 MHz Dimensions 185x 185x 45 mm (LxWxH) IP65, -25 to +75 °C.

SiemensMFR # 6GT2812-1GA08SKU # CEY-937FC77F210E

product brand nameSIMATIC RF

suitability for operationSIMATIC RF600

transmission frequency865 ... 928 MHz

with linear radiation6 dB

impedance50 Ω

polarizationLinear

Have questions?Chat on WhatsApp

About This Product

SIMATIC RF600 antenna RF642A linear (broadband) frequency range 865 to 928 MHz Dimensions 185x 185x 45 mm (LxWxH) IP65, -25 to +75 °C.

Siemens 6GT2812-1GA08

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

suitability for operationSIMATIC RF600

radio frequencies

transmission frequency865 ... 928 MHz

electrical data

with linear radiation6 dB

impedance50 Ω

polarizationLinear

standing wave ratio (VSWR) / maximum1.5

horizontal75°

vertical70°

type of electrical connection / of the antennaRP-TNC

design of plug-in connectionmale

mechanical data

materialPA 12

colorPastel turquoise

tightening torque / of the screw for securing the equipment / maximum2 N·m

relating to metal surfaces / recommended / minimum0 m

ambient conditions

during operation-25 ... +75 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

protection class IPIP65

shock resistanceaccording to EN 60068-2-27

shock acceleration300 m/s²

vibrational acceleration100 m/s²

design, dimensions and weights

width185 mm

height185 mm

depth45 mm

net weight600 g

fastening method4 screws M4 according to VESA 100, optional with articulated bracket by using antenna mounting kit

wire length / of antenna cable0.3 m

product features, product functions, product components / general

product feature / silicon-freeYes

standards, specifications, approvals

certificate of suitabilityCE (according to R&TTE), FCC (Title 47, Part 15.247), cULus

IECExNo

accessories

accessoriesAntenna cables 1 to 40 m
