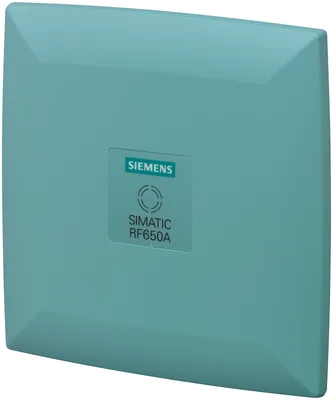

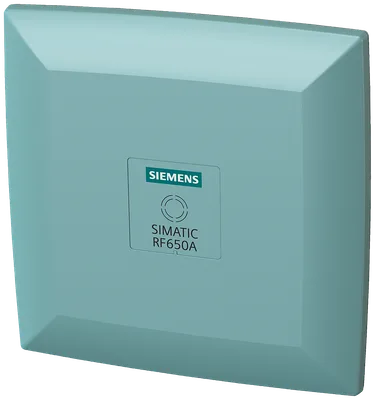

Siemens 6GT2812-0GB08

SIMATIC RF600 antenna RF650A; circular, frequency range 865 up to 928MHz broadband Dimensions 198x 198x 60 mm (LxWxH); IP65, -25 to +75 °C.

SiemensMFR # 6GT2812-0GB08SKU # CEY-8EF3B0385B2D

product brand nameSIMATIC RF

suitability for operationSIMATIC RF600

transmission frequency865 ... 928 MHz

with circular radiation4 dB

impedance50 Ω

polarizationCircular

Have questions?Chat on WhatsApp

About This Product

SIMATIC RF600 antenna RF650A; circular, frequency range 865 up to 928MHz broadband Dimensions 198x 198x 60 mm (LxWxH); IP65, -25 to +75 °C.

Siemens 6GT2812-0GB08

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

suitability for operationSIMATIC RF600

radio frequencies

transmission frequency865 ... 928 MHz

electrical data

with circular radiation4 dB

impedance50 Ω

polarizationCircular

standing wave ratio (VSWR) / maximum1.45

horizontal90°

vertical76°

type of electrical connection / of the antennaRP-TNC

design of plug-in connectionmale

mechanical data

materialPocan

colorPastel turquoise

tightening torque / of the screw for securing the equipment / maximum2 N·m

relating to metal surfaces / recommended / minimum0 m

ambient conditions

during operation-25 ... +75 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

protection class IPIP65

shock acceleration300 m/s²

vibrational acceleration100 m/s²

design, dimensions and weights

width198 mm

height198 mm

depth60 mm

net weight680 g

fastening method4 screws M4 according to VESA 100, optional with articulated bracket by using antenna mounting kit

wire length / of antenna cable0 m

product features, product functions, product components / general

product feature / silicon-freeYes

standards, specifications, approvals

certificate of suitabilityCE (according to R&TTE), FCC (Title 47, Part 15.247), cULus

IECExNo

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

accessories

accessoriesAntenna cables 1 to 40 m
