How can I get a price quote for Siemens 6GT2810-3HG00?

You can request a fast quote for Siemens 6GT2810-3HG00 from Yılsa Engineering. Reference part number YLS3BGJYSBNQSLO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GT2810-3HG00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GT2810-3HG00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GT2810-3HG00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

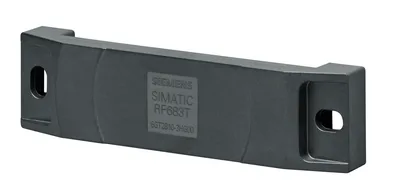

Siemens 6GT2810-3HG00

SIMATIC RF683T (ETSI) PPS, 130 x 32 x 15 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE DNA 224 bits (28 bytes) EPC ID 3072 bits (384 bytes) user memory fixing by mounting on metal, heat-resistant printing not possible temperature from -40 °C to +200 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ

SiemensMFR # 6GT2810-3HG00SKU # YLS3BGJYSBNQSLO

product brand nameSIMATIC RF

operating frequency865 ... 868 MHz

protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63

product feature / multitag-capableYes

polarizationLinear

product component / backup batteryNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6GT2810-3HG00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

radio frequencies

operating frequency865 ... 868 MHz

protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63

transfer rate / with radio transmission / maximum320 kbit/s

product feature / multitag-capableYes

polarizationLinear

electrical data

product component / backup batteryNo

memory

type of memoryEEPROM

storage capacity / of the user memory384 byte

type of memory organizationEPC memory 96 bit (12 byte) assigned with sequential identifier and expandable up to 240 bit (30 byte), user memory 512 bit (64 byte), TID memory 64 bit (8 byte)

number of read cycles / at ambient temperature < 40 °C / maximum1E+14

number of write cycles / at ambient temperature < 40 °C / maximum100000

data retention time / at ambient temperature < 40 °C / not less than10 a

property of memorylock, unlock, write protection, password protection

type of transponder chip usedUcode DNA

mechanical data

materialPPS

colorblack

tightening torque / of the screw for securing the equipment / maximum1 N·m

mounting distance / relating to metal surfaces / recommended / minimum0 mm

ambient conditions

during read/write access-25 ... +100 °C

outside the read/write area-40 ... +220 °C

during storage-40 ... +100 °C

ambient condition / for operationOperating temperature permanent up to 140 °C, for 5000 hours or 3000 cycles up to 200 °C, for 2000 hours or 1500 cycles up to 220 °C

protection class IPIP68/IPx9K

shock resistanceAccording to DIN EN 60721-3-7 Class 7 M3

shock acceleration1000 m/s²

vibrational acceleration200 m/s²

resistance to mechanical stressTorsion and bending stress not permissible

design, dimensions and weights

width32 mm

height15 mm

depth130 mm

net weight50 g

fastening method2 x M6 screws

product features, product functions, product components / general
