How can I get a price quote for Siemens 6GT2810-2EE01?

You can request a fast quote for Siemens 6GT2810-2EE01 from Yılsa Engineering. Reference part number CEY-8EF3B0385E33. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GT2810-2EE01 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GT2810-2EE01 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GT2810-2EE01?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

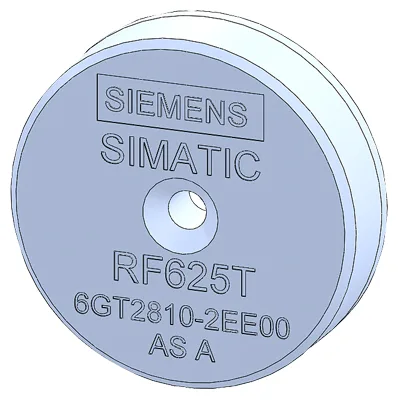

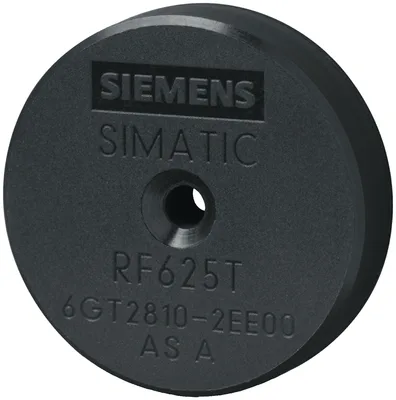

Siemens 6GT2810-2EE01

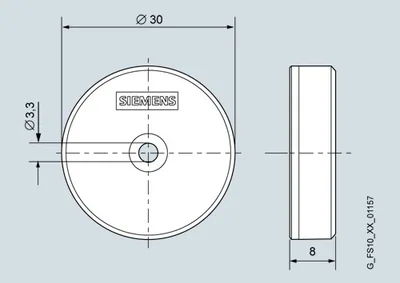

SIMATIC RF625T (FCC) PA, 30 x 8 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 902 to 928 MHz IMPINJI MONZA 4QT 128 bits (16 bytes) EPC ID 512 bits (64 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ

SiemensMFR # 6GT2810-2EE01SKU # CEY-8EF3B0385E33

product brand nameSIMATIC RF

operating frequency902 ... 928 MHz

protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63

product feature / multitag-capableYes

polarizationLinear

product component / backup batteryNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6GT2810-2EE01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

radio frequencies

operating frequency902 ... 928 MHz

protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63

transfer rate / with radio transmission / maximum320 kbit/s

product feature / multitag-capableYes

polarizationLinear

electrical data

product component / backup batteryNo

memory

type of memoryEEPROM

storage capacity / of the user memory64 byte

type of memory organizationEPC memory 96 bit (12 byte) assigned with sequential identifier and expandable up to 128 bit (16 byte), user memory 512 bit (64 byte), TID memory 32 bit (4 byte)

number of read cycles / at ambient temperature < 40 °C / maximum1E+14

number of write cycles / at ambient temperature < 40 °C / maximum100000

data retention time / at ambient temperature < 40 °C / not less than10 a

property of memorylock, unlock, write protection, password protection

type of transponder chip usedIMPINJ MONZA 4QT

mechanical data

materialPA6.6

colorblack

tightening torque / of the screw for securing the equipment / maximum1 N·m

mounting distance / relating to metal surfaces / recommended / minimum0 mm

ambient conditions

during read/write access-25 ... +85 °C
