How can I get a price quote for Siemens 6GT2810-2BB80?

You can request a fast quote for Siemens 6GT2810-2BB80 from Yılsa Engineering. Reference part number CEY-8EF3B0385E39. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GT2810-2BB80 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GT2810-2BB80 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GT2810-2BB80?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

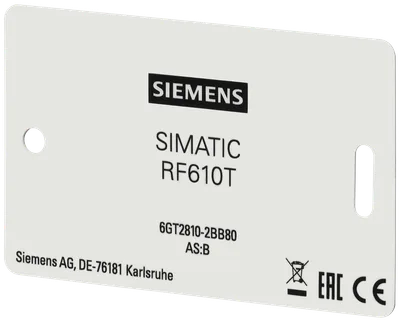

Siemens 6GT2810-2BB80

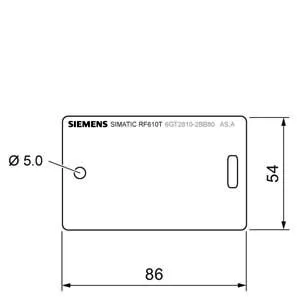

SIMATIC RF610T PVC, 86 x 54 x 0.4 ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 928 MHz Ucode 9xm EPCID up to 56 bytes/448 bits user memory up to 94 bytes/ 752 bits fixing by mounting on metal printing not possible temperature from -40 °C to +125 °C IP67 50 units/carton 1 carton 50 units minimum order quantity

SiemensMFR # 6GT2810-2BB80SKU # CEY-8EF3B0385E39

product brand nameSIMATIC RF

operating frequency860 ... 960 MHz

protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63

product feature / multitag-capableYes

polarizationLinear

product component / backup batteryNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6GT2810-2BB80

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

radio frequencies

operating frequency860 ... 960 MHz

protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63

transfer rate / with radio transmission / maximum320 kbit/s

product feature / multitag-capableYes

polarizationLinear

electrical data

product component / backup batteryNo

memory

type of memoryEEPROM

storage capacity / of the user memory256 byte

type of memory organizationEPC memory 96 bit (12 byte) expandable up to 448 bit (56 byte), user memory 2048 bit (256 byte), TID memory 96 bit (12 byte)

number of read cycles / at ambient temperature < 40 °C / maximum1E+14

number of write cycles / at ambient temperature < 40 °C / maximum100000

data retention time / at ambient temperature < 40 °C / not less than10 a

property of memorylock, unlock, kill, write protection, password protection

type of transponder chip usedNXP Ucode 7-xm 2k

mechanical data

materialPVC, food-safe

colorwhite

mounting distance / relating to metal surfaces / recommended / minimum3 mm

ambient conditions

during read/write access-25 ... +85 °C

outside the read/write area-40 ... +85 °C
