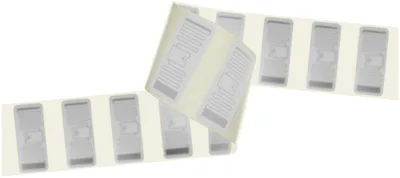

Siemens 6GT2810-2AE81-0AX3

SIMATIC RF630L SmartLabel PET white; 75 x 20 mm; ISO 18000-63, EPC Class 1 Gen 2 frequency 860 to 960 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory self-adhesive strongly adhesive on plastic printable thermotransfer temperature from -25 °C to +85 °C IP67 3,500 units/roll 2 rolls/carton 7,000 units MOQ. roll 76.2 mm (3") core diameter

SiemensMFR # 6GT2810-2AE81-0AX3SKU # YLSTACJEA8UOWHT

product brand nameSIMATIC RF

operating frequency860 ... 930 MHz

protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63

product feature / multitag-capableYes

polarizationLinear

product component / backup batteryNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6GT2810-2AE81-0AX3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

radio frequencies

operating frequency860 ... 930 MHz

protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63

transfer rate / with radio transmission / maximum320 kbit/s

product feature / multitag-capableYes

polarizationLinear

electrical data

product component / backup batteryNo

memory

type of memoryEEPROM

storage capacity / of the user memory256 byte

type of memory organizationEPC memory 96 bit (12 byte) expandable up to 448 bit (56 byte), user memory 2048 bit (256 byte), TID memory 96 bit (12 byte)

number of read cycles / at ambient temperature < 40 °C / maximum1E+14

number of write cycles / at ambient temperature < 40 °C / maximum100000

data retention time / at ambient temperature < 40 °C / not less than20 a

property of memorylock, unlock, kill, write protection, password protection

type of transponder chip usedNXP Ucode 7-xm 2k

mechanical data

materialPET

colorwhite

mounting distance / relating to metal surfaces / recommended / minimum3 mm

ambient conditions

during read/write access-25 ... +85 °C

outside the read/write area-40 ... +120 °C

during storage5 ... 25 °C

ambient condition / for operationMaximum storage life 2 years at 45% to 55% humidity, operating temperature permanent up to 85 °C, transient -40 °C to 120 °C for 90 minutes

protection class IPIP67, when adhered

resistance to mechanical stressTorsion and bending stress conditionally permissible

design, dimensions and weights

width20 mm

height0.3 mm

depth75 mm

net weight0.2 g

fastening methodone-side adhesible

pack typeRolls with 3500 labels for applicator with 3'' core

product features, product functions, product components / general

tamper-proofNo

printableYes
