Siemens 6GT2801-2BA10

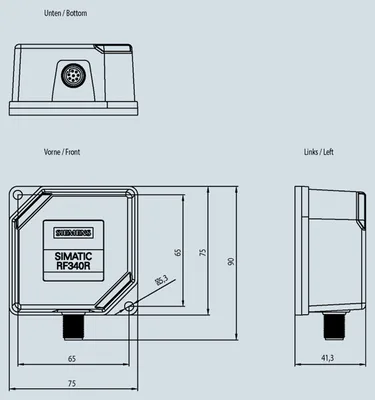

Please observe national approvals: www.siemens.com/rfid-approvals (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna .

SiemensMFR # 6GT2801-2BA10SKU # YLSLLCE668S0FZM

product brand nameSIMATIC RF

operating frequency / rated value13.56 MHz

product feature / multitag-capableNo

for write access / per byte / typical0.13 ms

for read access / per byte / typical0.13 ms

type of electrical connectionM12, 8-pin

Have questions?Chat on WhatsApp

About This Product

Please observe national approvals: www.siemens.com/rfid-approvals (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna .

Siemens 6GT2801-2BA10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

suitability for operationRF300, ISO 15693 and MOBY E transponder, for connecting to communication modules

radio frequencies

operating frequency / rated value13.56 MHz

protocol / with radio transmissionRF300 specific, ISO 15693, ISO 18000-3, ISO 14443

transfer rate / with radio transmission / maximum106 kbit/s

product feature / multitag-capableNo

electrical data

transfer rate / at the point-to-point connection / serial / maximum115.2 kbit/s

for write access / per byte / typical0.13 ms

for read access / per byte / typical0.13 ms

interfaces

standard for interfaces / for communicationRS422

type of electrical connectionM12, 8-pin

mechanical data

materialPA 12

colortitanium gray

tightening torque / of the screw for securing the equipment / maximum1.5 N·m

mounting distance / relating to metal surfaces / recommended / minimum0 mm

supply voltage, current consumption, power loss

rated value24 V

20.4 ... 28.8 V

at 24 V / typical0.06 A

ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

protection class IPIP67

shock resistanceEN 60721-3-7 Class 7 M2

shock acceleration500 m/s²

vibrational acceleration200 m/s²

design, dimensions and weights

width75 mm

height41 mm

depth75 mm

net weight0.25 kg

fastening method2 x M5 screws

for RS 422 interface / maximum1000 m

product features, product functions, product components / general

display version5-color LED

product feature / silicon-freeYes

standards, specifications, approvals

certificate of suitabilityRadio acc. to R&TTE guidelines EN 300 330, EN 301489, CE, FCC, cULus

IECExNo

MTBF260 a

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total50.4 kg

during manufacturing10.7 kg

during operation39.4 kg

after end of life0.3 kg
