How can I get a price quote for Siemens 6GT2800-5DA00?

You can request a fast quote for Siemens 6GT2800-5DA00 from Yılsa Engineering. Reference part number CEY-8EF3B0385E53. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GT2800-5DA00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GT2800-5DA00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GT2800-5DA00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

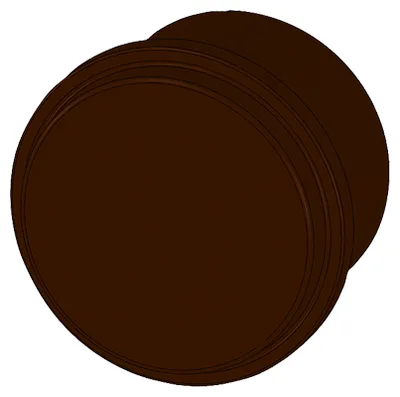

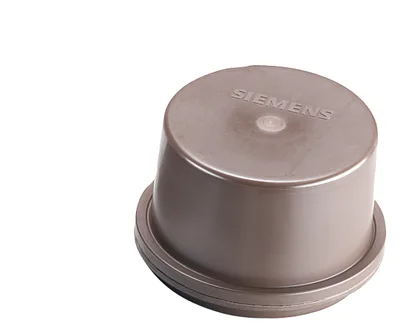

Siemens 6GT2800-5DA00

SIMATIC RF300 transponder RF380T heat-resistant, 32 KB FRAM IP68, -25 to max.+220 °C cyclically, D=114 mm, H=83 mm

SiemensMFR # 6GT2800-5DA00SKU # CEY-8EF3B0385E53

product brand nameSIMATIC RF

operating frequency / rated value13.56 MHz

protocol / with radio transmissionRF300-specific

product feature / multitag-capableNo

product component / backup batteryNo

type of memoryFRAM / EEPROM

Have questions?Chat on WhatsApp

About This Product

SIMATIC RF300 transponder RF380T heat-resistant, 32 KB FRAM IP68, -25 to max.+220 °C cyclically, D=114 mm, H=83 mm

Siemens 6GT2800-5DA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

radio frequencies

operating frequency / rated value13.56 MHz

protocol / with radio transmissionRF300-specific

transfer rate / with radio transmission / maximum106 kbit/s

product feature / multitag-capableNo

electrical data

product component / backup batteryNo

memory

type of memoryFRAM / EEPROM

storage capacity / of the user memory32765 byte

type of memory organizationUID (fixed code) 4 bytes, user memory 32765 bytes, OTP memory 20 bytes

number of read cycles / at ambient temperature < 40 °C / maximum1E+10

number of write cycles / at ambient temperature < 40 °C / maximum1E+10

data retention time / at ambient temperature < 40 °C / not less than10 a

property of memoryBlock-by-block write protection of the OTP memory

mechanical data

materialPPS

colorbrown or anthracite

mounting distance / relating to metal surfaces / recommended / minimum0 mm

ambient conditions

during read/write access-25 ... +110 °C

outside the read/write area-40 ... +220 °C

during storage-40 ... +110 °C

ambient condition / for operationCyclic operation at ambient temperature >110 °C

protection class IPIP68

shock resistanceAccording to DIN EN 60721-3-7 Class 7 M3

shock acceleration500 m/s²

vibrational acceleration200 m/s²

design, dimensions and weights

height83 mm

diameter114 mm

net weight900 g

fastening methodmount (see accessories)

product features, product functions, product components / general

silicon-freeYes

printableNo

standards, specifications, approvals

IECExYes

for IECEx / as markingEx: II 3G Ex nC IIB T5

cULus approvalYes

MTBF1200 a

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total9.985 kg

during manufacturing9 kg

during operation0 kg

after end of life0.807 kg

accessories

accessoriesSkid holder, shrouding cover, universal holder
