Siemens 6GT2800-5AC00

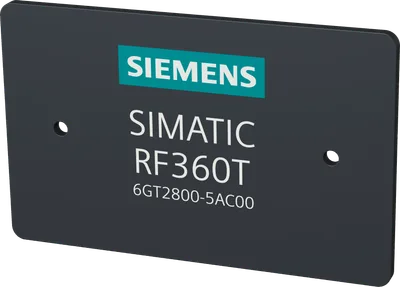

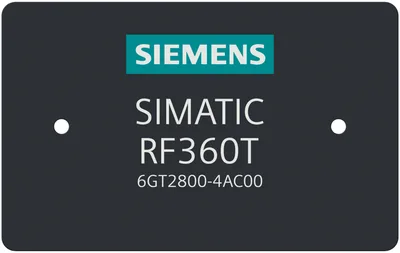

SIMATIC RF300 Transponder RF360T EPOXY card, 32 KB FRAM, IP67, -25 to +70 °C, 85x 54x 2.5 mm, Minimum order quantity 10 units
product brand nameSIMATIC RF
operating frequency / rated value13.56 MHz
protocol / with radio transmissionRF300-specific
product feature / multitag-capableNo
product component / backup batteryNo
type of memoryFRAM / EEPROM
About This Product
SIMATIC RF300 Transponder RF360T EPOXY card, 32 KB FRAM, IP67, -25 to +70 °C, 85x 54x 2.5 mm, Minimum order quantity 10 units
Siemens 6GT2800-5AC00
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSIMATIC RF
radio frequencies
operating frequency / rated value13.56 MHz
protocol / with radio transmissionRF300-specific
transfer rate / with radio transmission / maximum106 kbit/s
product feature / multitag-capableNo
electrical data
product component / backup batteryNo
memory
type of memoryFRAM / EEPROM
storage capacity / of the user memory32765 byte
type of memory organizationUID (fixed code) 4 bytes, user memory 32765 bytes, OTP memory 20 bytes
number of read cycles / at ambient temperature < 40 °C / maximum1E+10
number of write cycles / at ambient temperature < 40 °C / maximum1E+10
data retention time / at ambient temperature < 40 °C / not less than10 a
property of memoryBlock-by-block write protection of the OTP memory
mechanical data
materialEpoxy resin
coloranthracite
mounting distance / relating to metal surfaces / recommended / minimum20 mm
ambient conditions
during read/write access-25 ... +75 °C
outside the read/write area-40 ... +85 °C
during storage-40 ... +85 °C
protection class IPIP67
shock resistanceAccording to DIN EN 60721-3-7 Class 7 M3
shock acceleration500 m/s²
vibrational acceleration200 m/s²
resistance to mechanical stressContinuous torsion and bending stress not permissible

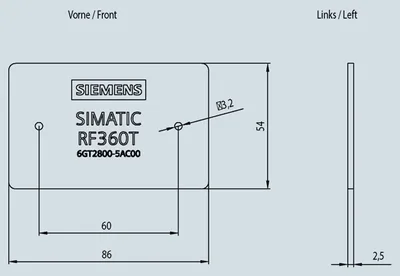

design, dimensions and weights
width55 mm
height2.5 mm
depth86 mm
net weight25 g
fastening method2 x M3 screws, mounting bag (see accessories)
product features, product functions, product components / general
silicon-freeYes
printableNo
standards, specifications, approvals
IECExNo
cULus approvalYes
MTBF1200 a
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total0.93 kg
during manufacturing0.88 kg
during operation0.00041 kg
after end of life0.05 kg
accessories
accessoriesFixing strap, spacer
