How can I get a price quote for Siemens 6GT2700-6CE02-0AX0?

You can request a fast quote for Siemens 6GT2700-6CE02-0AX0 from Yılsa Engineering. Reference part number YLSTOMOWOPPBIGC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GT2700-6CE02-0AX0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GT2700-6CE02-0AX0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GT2700-6CE02-0AX0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

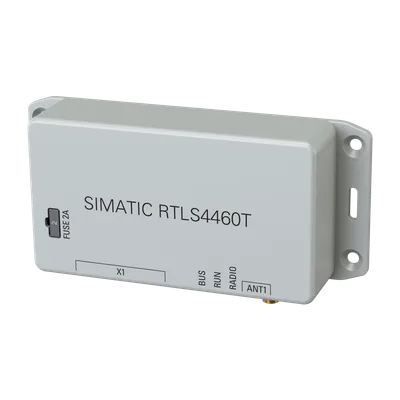

Siemens 6GT2700-6CE02-0AX0

SIMATIC RTLS transponder, special RTLS4460T-based for CD, chirp, for external antenna with RSMA,

SiemensMFR # 6GT2700-6CE02-0AX0SKU # YLSTOMOWOPPBIGC

product brand nameSIMATIC RTLS

operating frequency2400 ... 2480 MHz

typical1.5 m

protocol / with radio transmissionIEEE 802.15.4a CSS

product component / backup batteryNo

type of memoryFLASH

Have questions?Chat on WhatsApp

About This Product

SIMATIC RTLS transponder, special RTLS4460T-based for CD, chirp, for external antenna with RSMA,

Siemens 6GT2700-6CE02-0AX0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RTLS

radio frequencies

operating frequency2400 ... 2480 MHz

range / maximum1000 m; Range information for open air applications; always follow the manual

typical1.5 m

protocol / with radio transmissionIEEE 802.15.4a CSS

transfer rate / with radio transmission / maximum1000 kbit/s

electrical data

type of voltage supplyConnection plug 16-pin, 10 to 30 Volt, max. 1.6 W

product component / backup batteryNo

type of electrical connection / for external antenna(s)RSMA female

memory

type of memoryFLASH

data retention time / at ambient temperature < 40 °C / not less than20 a

property of memoryConfiguration memory

mechanical data

materialFR ABS

colorgrey

tightening torque / of the screw for securing the equipment / maximum0.6 N·m

ambient conditions

during read/write access-40 ... +70 °C

outside the read/write area-40 ... +70 °C

during storage-40 ... +70 °C

protection class IPIP20

design, dimensions and weights

width138 mm

height31 mm

depth62 mm

net weight125 g

fastening method4 x M4 screws with countersunk head

product features, product functions, product components / general

display version3 LEDs

operator element version16-pin connector WR-MPC4 for 5 DI (24 V), 5 DO (max. 250 mA), CAN bus, VCC 24V DC

standards, specifications, approvals

certificate of suitabilityEU conformity according to RED, RoHS, FCC, Canada ICES-003, motor vehicle registration E1 (ECE test symbol), railway approval: EN 50121, EN 50155, EN 45545

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

accessories

accessoriesWR-MPC4 16-pin plug with crimp contacts, antenna cable, antennas, 2 A fuse
