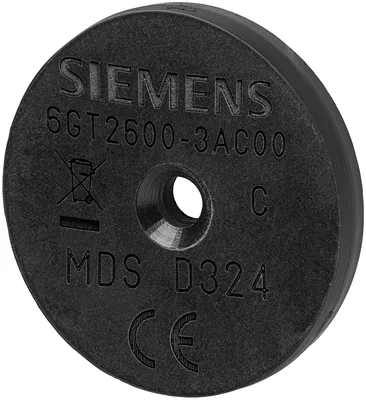

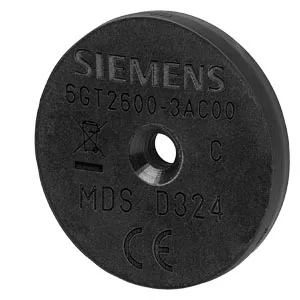

Siemens 6GT2600-3AC00
Transponder MDS D324 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type INFINEON SRF 55V10P, 992-byte user memory; 27x 4 mm (DxH); Minimum order quantity 20 units.
product brand nameSIMATIC RF
operating frequency / rated value13.56 MHz
protocol / with radio transmissionISO 15693
product feature / multitag-capableYes
product component / backup batteryNo
type of memoryEEPROM
About This Product
Transponder MDS D324 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type INFINEON SRF 55V10P, 992-byte user memory; 27x 4 mm (DxH); Minimum order quantity 20 units.
Siemens 6GT2600-3AC00
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSIMATIC RF
radio frequencies
operating frequency / rated value13.56 MHz
protocol / with radio transmissionISO 15693
transfer rate / with radio transmission / maximum26.5 kbit/s
product feature / multitag-capableYes
electrical data
product component / backup batteryNo
memory
type of memoryEEPROM
storage capacity / of the user memory992 byte
type of memory organizationUID (fixed code) 8 bytes, user memory 992 bytes, configuration memory 24 bytes
number of read cycles / at ambient temperature < 40 °C / maximum1E+14
number of write cycles / at ambient temperature < 40 °C / maximum100000
data retention time / at ambient temperature < 40 °C / not less than10 a
property of memoryBlock-by-block write protection of the user memory
type of transponder chip usedInfineon My-D SRF 55V10P
mechanical data
materialEpoxy resin
colorblack
tightening torque / of the screw for securing the equipment / maximum1 N·m
mounting distance / relating to metal surfaces / recommended / minimum15 mm
ambient conditions
during read/write access-25 ... +125 °C
outside the read/write area-40 ... +140 °C
during storage-40 ... +140 °C
protection class IPIP67
shock resistanceAccording to DIN EN 60721-3-7 Class 7 M3
shock acceleration1000 m/s²
vibrational acceleration200 m/s²
design, dimensions and weights
height4 mm
diameter27 mm
net weight5 g
fastening methodM3 screw, gluing
product features, product functions, product components / general
silicon-freeYes
printableNo
standards, specifications, approvals
IECExNo
MTBF171 a
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total0.93 kg
during manufacturing0.88 kg
during operation0.00041 kg
after end of life0.05 kg
accessories
accessoriesMounting support and spacer
