How can I get a price quote for Siemens 6GT2600-3AA10?

You can request a fast quote for Siemens 6GT2600-3AA10 from Yılsa Engineering. Reference part number CEY-8EF3B02C43DB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GT2600-3AA10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GT2600-3AA10 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GT2600-3AA10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

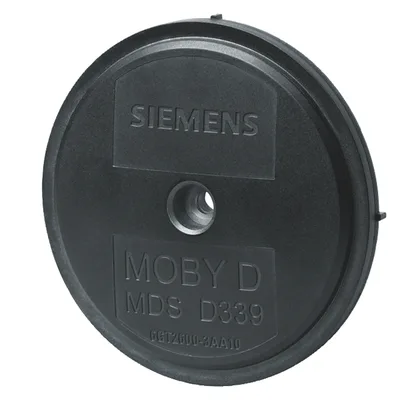

Siemens 6GT2600-3AA10

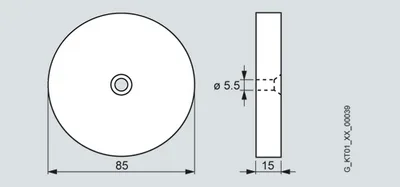

Transponder MDS D339 for RF200/RF300 ISO/MOBY D heat resistant up to +220 °C ISO 15693, chip type INFINEON SRF 55V10P, 992-byte user memory; 85x 15 mm (DxH); minimum order quantity 10 units.

SiemensMFR # 6GT2600-3AA10SKU # CEY-8EF3B02C43DB

product brand nameSIMATIC RF

operating frequency / rated value13.56 MHz

protocol / with radio transmissionISO 15693

product feature / multitag-capableYes

product component / backup batteryNo

type of memoryEEPROM

Have questions?Chat on WhatsApp

About This Product

Transponder MDS D339 for RF200/RF300 ISO/MOBY D heat resistant up to +220 °C ISO 15693, chip type INFINEON SRF 55V10P, 992-byte user memory; 85x 15 mm (DxH); minimum order quantity 10 units.

Siemens 6GT2600-3AA10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

radio frequencies

operating frequency / rated value13.56 MHz

protocol / with radio transmissionISO 15693

transfer rate / with radio transmission / maximum26.5 kbit/s

product feature / multitag-capableYes

electrical data

product component / backup batteryNo

memory

type of memoryEEPROM

storage capacity / of the user memory992 byte

type of memory organizationUID (fixed code) 8 bytes, user memory 992 bytes, configuration memory 24 bytes

number of read cycles / at ambient temperature < 40 °C / maximum1E+14

number of write cycles / at ambient temperature < 40 °C / maximum100000

data retention time / at ambient temperature < 40 °C / not less than10 a

property of memoryBlock-by-block write protection of the user memory

type of transponder chip usedInfineon My-D SRF 55V10P

mechanical data

materialPPS

colorblack

tightening torque / of the screw for securing the equipment / maximum1.5 N·m

mounting distance / relating to metal surfaces / recommended / minimum30 mm

ambient conditions

during read/write access-25 ... +100 °C

outside the read/write area-40 ... +220 °C

during storage-40 ... +100 °C

ambient condition / for operationOperating temperature permanent up to 100 °C, at 220 °C: up to 2000 hours or 1500 temperature cycles, at 200 °C: up to 5000 hours or 3000 temperature cycles

protection class IPIP68/IPx9K

shock resistanceAccording to DIN EN 60721-3-7 Class 7 M3

shock acceleration500 m/s²

vibrational acceleration200 m/s²

design, dimensions and weights

height15 mm

diameter85 mm

net weight50 g

fastening methodM5 screw

product features, product functions, product components / general

silicon-freeYes

printableNo
