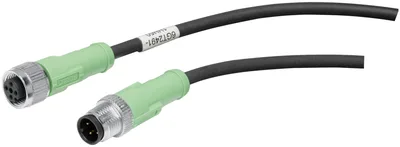

Siemens 6GT2491-1HH50

MOBY plug-in cable for Wide-range power supply units 6GT2494-0AA00, 6GT2898-0AA00, 6GT2898-0AA10, 6GT2898-0AA20, 24 V DC; PUR, length 5 m.

SiemensMFR # 6GT2491-1HH50SKU # CEY-8EF3B0385E98

product brand nameSIMATIC RF

cable designationLi9Y11Y-HF

wire length5 m

number of electrical connections2

loop resistance per length / maximum116 mΩ/m

insulation resistance coefficient1000 GΩ·m

Have questions?Chat on WhatsApp

About This Product

MOBY plug-in cable for Wide-range power supply units 6GT2494-0AA00, 6GT2898-0AA00, 6GT2898-0AA10, 6GT2898-0AA20, 24 V DC; PUR, length 5 m.

Siemens 6GT2491-1HH50

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

suitability for usePlug-in cable for connecting a 24 V power supply to a load

cable designationLi9Y11Y-HF

wire length5 m

electrical data

number of electrical connections2

type of electrical connectionM12 (male, 4 pin, straight) / M12 (female, 4 pin, straight)

loop resistance per length / maximum116 mΩ/m

insulation resistance coefficient1000 GΩ·m

maximum300 V

mechanical data

number of electrical cores4

design of the shieldunshielded

of cable sheath4.7 mm

symmetrical tolerance of the outer diameter / of cable sheath0.15 mm

of the wire insulationPP

of cable sheathPUR

of the insulation of data wiresbrown, white, blue, black

of cable sheathblack-grey

with single bend / minimum permissible23.5 mm

with multiple bends / minimum permissible47 mm

with continuous bending47 mm

number of bending cycles4000000

weight per length30 kg/km

ambient conditions

during operation-25 ... +80 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

during installation-25 ... +80 °C

fire behaviorflame resistant according to UL-Style 20549, FT1 gem. UL 758

to mineral oilresistant according to DIN EN 60811-2-1

to greaseresistant according to DIN EN 60811-2-1

radiological resistance / to UV radiationconditional UV resistance according to DIN EN ISO 4892-2-A

product features, product functions, product components / general

halogen-freeYes

silicon-freeYes

standards, specifications, approvals

UL/ETL listing / 300 V RatingYes; FT1 gem. UL 758
