How can I get a price quote for Siemens 6GK7342-5DA03-0XE0?

You can request a fast quote for Siemens 6GK7342-5DA03-0XE0 from Yılsa Engineering. Reference part number CEY-937FC7801A7D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK7342-5DA03-0XE0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK7342-5DA03-0XE0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK7342-5DA03-0XE0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

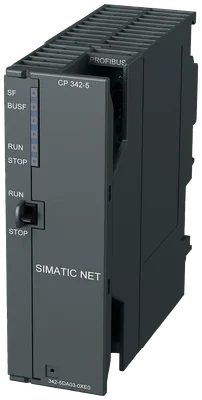

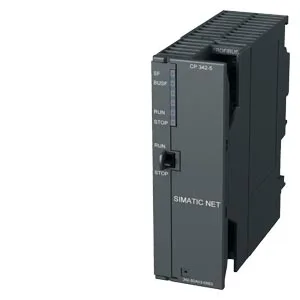

Siemens 6GK7342-5DA03-0XE0

- - spare part - - communications processor CP 342-5 for connection of SIMATIC S7-300 to PROFIBUS DP, S5-compatible, PG/OP and S7 communication.

SiemensMFR # 6GK7342-5DA03-0XE0SKU # CEY-937FC7801A7D

product brand nameSIMATIC NET

for power supply1

for power supply4-pole terminal block

type of voltage / of the supply voltageDC

supply voltage / 1 / from backplane bus5 V

supply voltage / external24 V

Have questions?Chat on WhatsApp

About This Product

- - spare part - - communications processor CP 342-5 for connection of SIMATIC S7-300 to PROFIBUS DP, S5-compatible, PG/OP and S7 communication.

Siemens 6GK7342-5DA03-0XE0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

transfer rate

at the 1st interface / according to PROFIBUS9.6 kbit/s ... 12 Mbit/s

interfaces

number of interfaces / according to Industrial Ethernet0

at the 1st interface / according to PROFIBUS1

for power supply1

at the 1st interface / according to PROFIBUS9-pin Sub-D socket (RS485)

for power supply4-pole terminal block

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

supply voltage / 1 / from backplane bus5 V

supply voltage / external24 V

supply voltage / external / at DC / rated value24 V

relative positive tolerance / at DC / at 24 V20 %

relative negative tolerance / at DC / at 24 V15 %

from backplane bus / at DC / at 5 V / typical0.15 A

from external supply voltage / at DC / at 24 V / typical0.25 A

power loss [W]6.75 W

ambient conditions

during operation0 ... 60 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

design, dimensions and weights

module formatCompact module S7-300 single width

width40 mm

height125 mm

depth120 mm

net weight0.3 kg

product features, product functions, product components / general

per CPU / maximum4

performance data / open communication

number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum16

as user data per connection / for open communication / by means of SEND/RECEIVE blocks / maximum240 byte

performance data / PROFIBUS DP

DPV0Yes

on DP master / operable124

of the address range of the inputs / as DP master / total2160 byte

of the address range of the outputs / as DP master / total2160 byte

of the address range of the inputs / per DP device244 byte

of the address range of the outputs / per DP device244 byte

of the address range of the diagnostic data / per DP device240 byte

DPV0Yes

of the address range of the inputs / as DP device / total240 byte

of the address range of the outputs / as DP device / total240 byte

performance data / S7 communication

maximum16

performance data / multi-protocol mode

without DP / maximum32

with DP / maximum28

performance data / telecontrol

TCP/IPNo

product functions / management, configuration, engineering

requiredSTEP 7 V5.1 SP2 or higher / STEP 7 Professional V12 (TIA Portal) or higher

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

standards, specifications, approvals

certificate of suitability / CE markingYes

certificate of suitability / UKCA markingYes

certificate of suitability / Regulatory Compliance Mark (RCM)Yes

certificate of suitability / EAC approvalYes

standards, specifications, approvals / hazardous environments / header

certificate of suitability / ATEXYes

certificate of suitability / IECExYes

certificate of suitability / ULhazloc approvalYes

certificate of suitability / CCC / for hazardous zone according to GB standardYes

certificate of suitability / FM registrationYes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total229.03 kg

during manufacturing17.48 kg

during operation211.2 kg

after end of life0.35 kg
