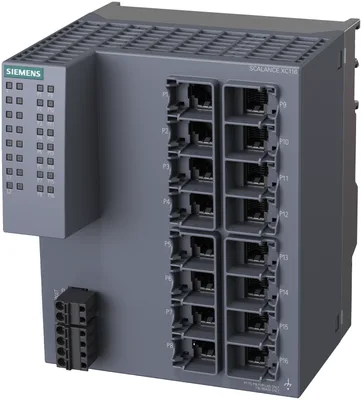

Siemens 6GK5116-0BA00-2AC2
SCALANCE XC116, Unmanaged IE switch, 16x 10/100 Mbit/s RJ45 ports, LED diagnostics, error-signaling contact with set pushbutton, redundant power supply Manual available as a download .
product brand nameSCALANCE
product type designationXC116
transfer rate10, 100 Mbit/s
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
About This Product
SCALANCE XC116, Unmanaged IE switch, 16x 10/100 Mbit/s RJ45 ports, LED diagnostics, error-signaling contact with set pushbutton, redundant power supply Manual available as a download .
Siemens 6GK5116-0BA00-2AC2
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product type designation
product brand nameSCALANCE
product type designationXC116
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment16; RJ45
interfaces / other
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
for power supply4-pole terminal block
at DC / rated value24 V
at DC / maximum0.1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyYes
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value5.4 W
supply voltage / 1 / voltage range9.6 ... 31.2
consumed current / 1 / maximum0.45 A
type of electrical connection / 1 / for power supply4-pole terminal block
product component / 1 / fusing at power supply inputYes
fuse protection type / 1 / at input for supply voltage2,5 A / 125 V
ambient conditions
during operation-40 ... +70 °C
during storage-40 ... +85 °C
during transport-40 ... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
designcompact
width120 mm
height147 mm
depth125 mm
net weight0.775 kg
material / of the enclosurePolycarbonate (PC-GF10)
35 mm DIN-rail mountingYes
wall mountingYes
S7-300 rail mountingYes
S7-1500 rail mountingYes
product features, product functions, product components / general
number of automatically learnable MAC addresses2048
product functions / management, configuration, engineering
multiport mirroringNo
CoSYes
switch-managedNo
PROFINET conformity classA
product functions / redundancy
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No
standards, specifications, approvals
CE markingYes
EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1Yes
cULus approvalYes
KC approvalYes
Regulatory Compliance Mark (RCM)Yes
for EMC interference emissionEN 61000-6-4 (Class B)
for safety / from CSA and ULUL 60950-1, CSA C22.2 No. 60950-1
standards, specifications, approvals / hazardous environments
ATEXYes
UKEXYes
IECExYes
ULhazloc approvalYes
CCC / for hazardous zone according to GB standardYes
FM registrationYes
standards, specifications, approvals / other
RoHS conformityYes
resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3
standards, specifications, approvals / marine classification
certificate of suitability / shipbuilding approval / noteCertifications marked 'No' are currently under renewal.
American Bureau of Shipping Europe Ltd. (ABS)No
French marine classification society (BV)No
Chinese Classification Society (CCS)No
Det Norske Veritas (DNV)No
Korean Register of Shipping (KRS)No
Lloyds Register of Shipping (LRS)No
Nippon Kaiji Kyokai (NK)No
Polski Rejestr Statkow (PRS)No
Royal Institution of Naval Architects (RINA)Yes
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total441.1 kg
during manufacturing47.67 kg
during operation392.82 kg
after end of life0.57 kg
product functions / general
laser protection classLED Class 1
warranty period5 a
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing47.67 kg
global warming potential [CO2 eq] / during operation392.82 kg
global warming potential [CO2 eq] / after end of life0.57 kg
global warming potential [CO2 eq] / total441.1 kg
Accessories 103
Genuine accessories that can be used with the Siemens 6GK5116-0BA00-2AC2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| 6GK1901-1BB50-0AA0 | Aksesuar | |
| 6GK5980-0BB10-0AA5 | Aksesuar | |
| 6GK5980-1DB10-0AA5 | Aksesuar | |
| 6GK5980-4AA00-0AA5 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6GK1901-1BB10-2AB0 | Aksesuar | |
| 6GK1901-1BB10-2AE0 | Aksesuar | |
| 6XV1870-4BE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN12 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5MH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN30 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1870-4BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2B | Aksesuar · Cables · network cable electrical |
Related Products
View Details
Siemens
1EE1124-..A00-...4
MFR #1EE1124-..A00-...4
SKU #YLSKZIN1GEIPRVP
View Details
Siemens
1EE1142-..A00-...4
MFR #1EE1142-..A00-...4
SKU #YLSUX3MNEZEJGPU
View Details
Siemens
1EE1144-..A00-...4
MFR #1EE1144-..A00-...4
SKU #YLSD9GON9QOYBAE
View Details
Siemens
1EE1322-....0-...4
MFR #1EE1322-....0-...4
SKU #YLSSAVZE8P7OOP6
View Details
Siemens
1EE1322-...00-1..2
MFR #1EE1322-...00-1..2
SKU #YLSY69IQB2JXAXJ
View Details
Siemens
1EE1322-..A00-...4
MFR #1EE1322-..A00-...4
SKU #YLSH1E6AJR6XWJF
View Details
Siemens
1EE1324-....0-...4
MFR #1EE1324-....0-...4
SKU #YLS8GBB9BXAF83
View Details
Siemens
1EE1324-...00-1..2
MFR #1EE1324-...00-1..2
SKU #YLSLOS6I1BDXR58
View Details
Siemens
1EE1324-..A00-...4
MFR #1EE1324-..A00-...4
SKU #YLSE0T3LUEU0CI
Featured Products
View Details
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
View Details
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
View Details
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
View Details
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
View Details
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
View Details
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
View Details
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
View Details
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
View Details
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Related Searches
Siemens 6GK5116-0BA00-2AC2 priceSiemens 6GK5116-0BA00-2AC2 quotebuy Siemens 6GK5116-0BA00-2AC26GK5116-0BA00-2AC2 price6GK5116-0BA00-2AC2 stock availabilitySiemens spare partsSiemens 6GK5116-0BA00-2AC2 equivalentSiemens 6GK5116-0BA00-2AC2 specifications
