How can I get a price quote for Siemens 6GK1571-1AA00?

You can request a fast quote for Siemens 6GK1571-1AA00 from Yılsa Engineering. Reference part number CEY-8EF3B0300D05. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK1571-1AA00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK1571-1AA00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK1571-1AA00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

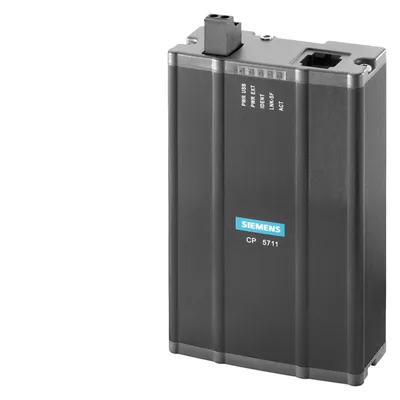

Siemens 6GK1571-1AA00

Communications processor CP 5711 USB adapter (USB V2.0) for connection of a PG or Notebook to PROFIBUS or MPI; contain 2 m USB cable.

SiemensMFR # 6GK1571-1AA00SKU # CEY-8EF3B0300D05

product brand nameSIMATIC NET

for power supply1

number of interfaces / according to USB1

for power supply2-pole terminal block

standard for interfaces / USB 2.0Yes

type of voltage / of the supply voltageDC

Have questions?Chat on WhatsApp

About This Product

Communications processor CP 5711 USB adapter (USB V2.0) for connection of a PG or Notebook to PROFIBUS or MPI; contain 2 m USB cable.

Siemens 6GK1571-1AA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

transfer rate

at the 1st interface / according to PROFIBUS9.6 kbit/s ... 12 Mbit/s

interfaces

at the 1st interface / according to PROFIBUS1

for power supply1

number of interfaces / according to USB1

at the 1st interface / according to PROFIBUS9-pin Sub-D socket (RS 485)

for power supply2-pole terminal block

of the USB interfaceStandard-B socket with mechanical interlock

standard for interfaces / USB 2.0Yes

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

type of voltage supply / optional external power supplyYes

from USB5 V

external24 V

external18 ... 30 V

noteSupplied directly from USB provided that supply from PC is adequate; alternative external supply is possible

at 5 V5 %

at 24 V5 %

from USB0.5 A

from external supply voltage / at DC / at 24 V / maximum0.3 A

power loss [W]2.5 W

ambient conditions

during operation0 ... 60 °C

during storage-40 ... +60 °C

during transport-40 ... +60 °C

relative humidity / at 25 °C / without condensation / during operation / maximum85 %

protection class IPIP20

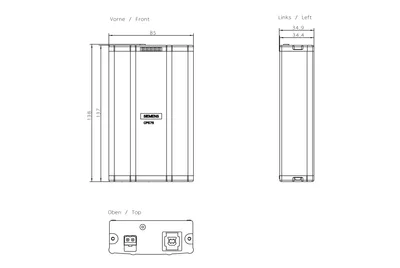

design, dimensions and weights

module formatUSB V2.0 adapter

width85 mm

height137 mm

depth35 mm

net weight300 g

fastening methodMounting on DIN rail with optional mounting rail support

fastening method / 35 mm top hat DIN rail mountingYes

product features, product functions, product components / general

number of plug-in cards of same design / plug-in / per PC station1

number of units / note-

performance data / open communication

software / for open communication / by means of SEND/RECEIVE / requiredYes, SOFTNET-PB DP / SOFTNET-PB DP Slave / SOFTNET-PB S7

number of possible connections / for open communication / by means of SEND/RECEIVE / maximum50

performance data / PROFIBUS DP

software / for DP master function / requiredYes, SOFTNET-PB DP

DPV0Yes

DPV1No

DPV2No

number of DP devices / on DP master / operable64

of the address range of the inputs / as DP master / total15616 byte

of the address range of the outputs / as DP master / total15616 byte

of the address range of the inputs / per DP device244 byte

of the address range of the outputs / per DP device244 byte

of the address range of the diagnostic data / per DP device244 byte

software / for DP device function / requiredYes, SOFTNET-PB DP slave

DPV0Yes

DPV1No

of the address range of the inputs / as DP device / total122 byte

of the address range of the outputs / as DP device / total122 byte

performance data / S7 communication

software / for S7 communication / requiredYes, SOFTNET-PB S7

number of possible connections / for S7/PG communication / maximum8

performance data / multi-protocol mode

number of configurable connections / per PC station207

product functions / management, configuration, engineering

configuration software / requiredIncluded in the scope of delivery of the required software product

product functions / diagnostics

port diagnosticsYes

standards, specifications, approvals

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total87.12 kg

during manufacturing17.94 kg

during operation69.05 kg

after end of life0.13 kg

accessories

accessoriesoptional: MPI cable, mounting rail support

Accessories 8

Genuine accessories that can be used with the Siemens 6GK1571-1AA00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6GK1571-1AA00-0AD0	Aksesuar · Cables · network cable electrical
6GK1571-1AA00-0AH0	Aksesuar
6GK1704-5CW00-3AL0	Aksesuar
6GK1704-5DW00-3AL0	Aksesuar
6GK1704-5CW25-0AA0	Aksesuar
6GK1704-5SW00-3AL0	Aksesuar
6GK1704-5DW25-0AA0	Aksesuar
6GK1704-5SW25-0AA0	Aksesuar
