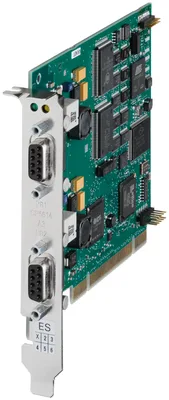

Siemens 6GK1561-4AA02

Successor for CP 5614 A2 6GK1561-4AA01; equidistance function currently not released 5614 A3, PCI card (32-bit; 3.3/5 V; 33/66 MHz); with master and device interface for connection to PROFIBUS; including configuration tool and DP-Base software: DP-RAM interface for DP master; including PG and FDL protocol; single license for 1 installation of runtime software, class A; operating system support, see SIMATIC NET software.

SiemensMFR # 6GK1561-4AA02SKU # CEY-8EF3B02EBBB9

product brand nameSIMATIC NET

type of voltage / of the supply voltageDC

1 / from backplane bus3.3 V

2 / from backplane bus12 V

at 3.3 V9 %

at 12 V8 %

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK1561-4AA02

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

transfer rate

at the 1st interface / according to PROFIBUS9.6 kbit/s ... 12 Mbit/s

at the 2nd interface / according to PROFIBUS9.6 kbit/s ... 12 Mbit/s

interfaces

at the 1st interface / according to PROFIBUS1

at the 2nd interface / according to PROFIBUS1

at the 1st interface / according to PROFIBUS9-pin Sub-D socket (RS 485)

at the 2nd interface / according to PROFIBUS9-pin Sub-D socket (RS 485)

of the backplane busPCI (32Bit 3,3V/5V UniversalKey 33/66MHz)

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

1 / from backplane bus3.3 V

2 / from backplane bus12 V

at 3.3 V9 %

at 12 V8 %

1 / from backplane bus / at DC / maximum0.15 A

2 / from backplane bus / at DC / maximum0.3 A

power loss [W]4 W

ambient conditions

during operation5 ... 55 °C

during storage-20 ... +60 °C

during transport-20 ... +60 °C

relative humidity / at 25 °C / without condensation / during operation / maximum85 %

protection class IPIP00

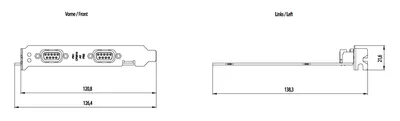

design, dimensions and weights

module formatPCI

width18 mm

height107 mm

depth125 mm

net weight0.113 kg

product features, product functions, product components / general

number of plug-in cards of same design / plug-in / per PC station4

number of units / note-

performance data / open communication

software / for open communication / by means of SEND/RECEIVE / requiredFDL driver included in scope of delivery of the CP

number of possible connections / for open communication / by means of SEND/RECEIVE / maximum80

performance data / PROFIBUS DP

software / for DP master function / requiredNo

DPV0Yes

DPV1Yes

DPV2Yes

number of DP devices / on DP master / operable124

of the address range of the inputs / as DP master / total30256 byte

of the address range of the outputs / as DP master / total30256 byte

of the address range of the inputs / per DP device244 byte

of the address range of the outputs / per DP device244 byte

of the address range of the diagnostic data / per DP device244 byte

software / for DP device function / requiredNo

DPV0Yes

DPV1Yes

of the address range of the inputs / as DP device / total244 byte

of the address range of the outputs / as DP device / total244 byte

performance data / S7 communication

software / for S7 communication / requiredYes, HARDNET-PB S7 (S7-5613)

number of possible connections / for S7/PG communication / maximum50

performance data / multi-protocol mode

number of active connections / with multi-protocol mode50

number of configurable connections / per PC station207

product functions / management, configuration, engineering

configuration software / requiredIncluded in scope of supply

product functions / diagnostics

port diagnosticsYes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total142.3181 kg

during manufacturing33.2 kg

during operation109 kg

after end of life0.056 kg
