How can I get a price quote for Siemens 6GK1561-2AA00?

You can request a fast quote for Siemens 6GK1561-2AA00 from Yılsa Engineering. Reference part number CEY-937FC780A9F8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK1561-2AA00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK1561-2AA00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK1561-2AA00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

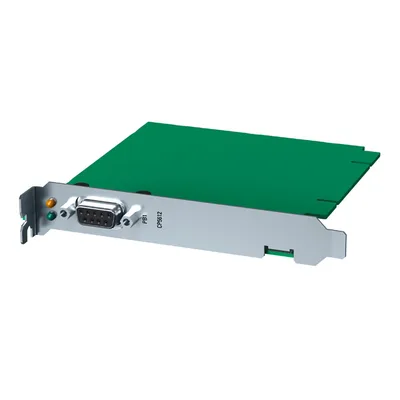

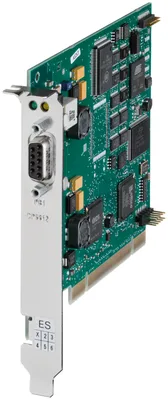

Siemens 6GK1561-2AA00

Successor for CP 5611 A2 for multicore PC systems 5612 PCI card for connection connection of a PG or PC with PCI bus to PROFIBUS or MPI usable in 32 bit and 64 bit operating systems see also entry ID 22611503.

SiemensMFR # 6GK1561-2AA00SKU # CEY-937FC780A9F8

product brand nameSIMATIC NET

type of voltage / of the supply voltageDC

1 / from backplane bus3.3 V

2 / from backplane bus12 V

at 3.3 V9 %

at 12 V8 %

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK1561-2AA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

transfer rate

at the 1st interface / according to PROFIBUS9.6 kbit/s ... 12 Mbit/s

interfaces

at the 1st interface / according to PROFIBUS1

at the 1st interface / according to PROFIBUS9-pin Sub-D socket (RS 485)

of the backplane busPCI (32Bit 3,3V/5V UniversalKey 33/66MHz)

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

1 / from backplane bus3.3 V

2 / from backplane bus12 V

at 3.3 V9 %

at 12 V8 %

1 / from backplane bus / at DC / maximum0.15 A

2 / from backplane bus / at DC / maximum0.25 A

power loss [W]3.5 W

ambient conditions

during operation5 ... 55 °C

during storage-20 ... +60 °C

during transport-20 ... +60 °C

relative humidity / at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP00

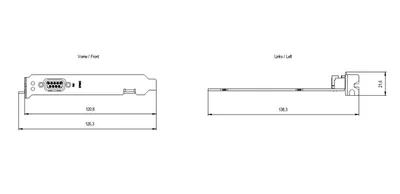

design, dimensions and weights

module formatPCI

width18 mm

height107 mm

depth125 mm

net weight98 g

product features, product functions, product components / general

number of plug-in cards of same design / plug-in / per PC station1

number of units / note-

performance data / open communication

software / for open communication / by means of SEND/RECEIVE / requiredYes, SOFTNET-PB DP / SOFTNET-PB DP Slave / SOFTNET-PB S7

number of possible connections / for open communication / by means of SEND/RECEIVE / maximum50

performance data / PROFIBUS DP

software / for DP master function / requiredYes, SOFTNET-PB DP

DPV0Yes

DPV1Yes

DPV2No

number of DP devices / on DP master / operable64

of the address range of the inputs / as DP master / total14640 byte

of the address range of the outputs / as DP master / total14640 byte

of the address range of the inputs / per DP device244 byte

of the address range of the outputs / per DP device244 byte

of the address range of the diagnostic data / per DP device244 byte

software / for DP device function / requiredYes, SOFTNET-PB DP slave

DPV0Yes

DPV1No

of the address range of the inputs / as DP device / total122 byte

of the address range of the outputs / as DP device / total122 byte

performance data / S7 communication

software / for S7 communication / requiredYes, SOFTNET-PB S7

number of possible connections / for S7/PG communication / maximum8

performance data / multi-protocol mode

number of configurable connections / per PC station207

product functions / management, configuration, engineering

configuration software / requiredIncluded in the scope of delivery of the required software product

product functions / diagnostics

port diagnosticsYes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total129.18 kg

during manufacturing33.2 kg

during operation95.92 kg

after end of life0.06 kg

accessories

accessoriesoptional: MPI cable
