How can I get a price quote for Siemens 6GF3320-0HT01?

You can request a fast quote for Siemens 6GF3320-0HT01 from Yılsa Engineering. Reference part number CEY-8EF3B0385811. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GF3320-0HT01 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GF3320-0HT01 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GF3320-0HT01?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

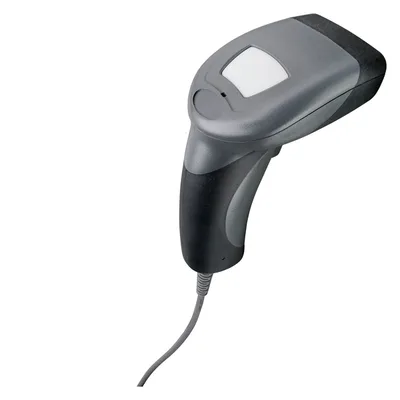

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6GF3320-0HT01

SIMATIC MV320 optical reader, handheld reader for 1D and 2D codes e.g. data matrix, ready-to-use set from reader and USB cable power supply via USB 6' (1.8 m) for use with codes with medium to high contrast, reading range depending on code type and size 20 mm to 375 mm.

SiemensMFR # 6GF3320-0HT01SKU # CEY-8EF3B0385811

product brand nameSIMATIC MV

range20 ... 375 mm

range / noteCode-dependent

fastening method / of lensIntegrated

picture recording frequency / maximum10 Hz

type of battery--

Have questions?Chat on WhatsApp

About This Product

Siemens 6GF3320-0HT01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC MV

suitability for operation1D/2D: Aztec, Codabar, Codablock F, Code 11, Code 39, Code 39 Short Margin, Code 39 Extended Full ASCII, Code 39 Checksum, Code 93, Code 128, Code 128 Short Margin, Composite, Data Matrix, Data Matrix Rectangle, Data Matrix Inverse, GS1 DataBar (all), Interleaved 2of5, Interleaved 2of5 - 2 Digits, Macro PDF417, Maxicode, Matrix 2of5, Micro PDF417, MSI Plessy, NEC 2of5, OCR, PDF417, Postal Codes (All), QR Code, Telepen, UPC, UPC Short Margin, UPC Extension

range20 ... 375 mm

range / noteCode-dependent

optical data

design of image sensor / of the cameraCMOS 1280 x 960, image resolution 960 x 640

fastening method / of lensIntegrated

type of light sourceLighting system comprising incident light (red)

picture recording frequency / maximum10 Hz

type of focusingFixed focus, optimum focal point at 6.3 mm

supply voltage, current consumption, power loss

type of current supplyVia USB or external plug-type power supply unit (RS232), 5 V, 410 mA

type of battery--

ambient conditions

during operation-20 ... +55 °C

during storage-30 ... +65 °C

relative humidity / at 25 °C / without condensation / during operation / maximum95 %

height of fall / maximum1.8 m

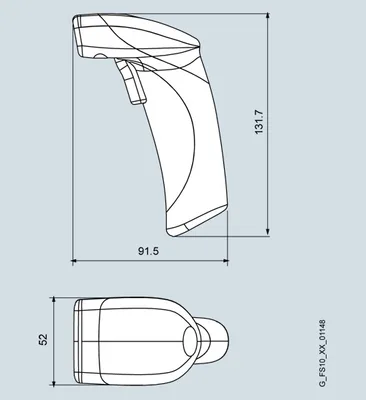

design, dimensions and weights

width132 mm

height52 mm

depth92 mm

net weight0.13 kg

product features, product functions, product components / general

design of the display2 LEDs

operator element versionTrigger in handle

design of acoustic signaling elementVibration alarm, audible signal

design of the interfaceUSB, RS232

product functions / management, configuration, engineering

product function / of the softwareRead, display, save, transfer codes

type of programmingOptical parameterization or via configuration software

accessories

accessoriesRS232 cable with power supply, USB cable, stand
