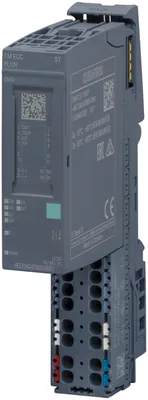

Siemens 6FE1242-6TM20-0BB1
SIMATIC ET 200SP TM ECC PL ST load controller for conductive charging of electric vehicles according to DIN SPEC 70121 / ISO15118 charge operating mode 4 CCS combined charging temp.: -30 °C to 60 °C 1x Control Pilot including Powerline Green Phy 1x Plug Present / Proximity Pilot 1x Digital Out TRIP function as open collector 1x Digital Out (DQ P) as open collector suitable for BU type BU20-P12+A0+4B or BU type BU20-P12+A4+0B
Product type designationECC PL ST
HW functional status1
Firmware versionV1.1.13
FW update possibleYes
usable BaseUnitsBU type B0, B1
Mean time between failures (MTBF)114.14 a; @ 25 °C
About This Product
SIMATIC ET 200SP TM ECC PL ST load controller for conductive charging of electric vehicles according to DIN SPEC 70121 / ISO15118 charge operating mode 4 CCS combined charging temp.: -30 °C to 60 °C 1x Control Pilot including Powerline Green Phy 1x Plug Present / Proximity Pilot 1x Digital Out TRIP function as open collector 1x Digital Out (DQ P) as open collector suitable for BU type BU20-P12+A0+4B or BU type BU20-P12+A4+0B
Siemens 6FE1242-6TM20-0BB1
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
Product type designationECC PL ST
HW functional status1
Firmware versionV1.1.13
FW update possibleYes
Product descriptionTechnology module for the conductive charging of electric vehicles according to DIN 70121
usable BaseUnitsBU type B0, B1
Mean time between failures (MTBF)114.14 a; @ 25 °C
Number of channels1; Acc. to IEC 61851-1 Mode 4 and DIN SPEC 70121
Product function
I&M dataYes; I&M0 to I&M3
Isochronous modeNo
Engineering with
STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V16 or higher
Installation type/mounting
Mounting typestandard rail
Mounting positionHorizontal, vertical
Supply voltage
Type of supply voltageDC
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Reverse polarity protectionYes; against destruction
Load voltage L+
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Reverse polarity protectionYes
Input current
Current consumption, typ.40 mA
Current consumption, max.100 mA
Digital inputs
Number of digital inputs0
Digital inputs, parameterizableNo
Cable length
shielded, max.10 m
Digital outputs
Type of digital outputTransistor
Number of digital outputs2; 1x digital out TRIP function as open collector, 1x digital out (DQ P) as open collector
Current-sinkingYes
short-circuit proofYes
Digital output functions, parameterizable
PWM outputYes; acc. to DIN SPEC 70121 and ISO 15118
— Number, max.1; 1 per channel
— Cycle duration, parameterizableNo; 1 kHz
Connection of a DC motorNo; Only fixed charging cables are permitted for DC charging systems
Switching capacity of the outputs
with resistive load, max.0.6 A; Per digital output
Output voltage
Type of output voltageDC
Rated value (DC)24 V
Cable length
unshielded, max.10 m
Analog inputs
Number of analog inputs1; plug present according to IEC 61851
Analog outputs
Number of analog outputs1
Type of analog outputControl pilot including Powerline Green Phy, acc. to DIN SPEC 70121
Connection of a DC motorNo
Protocols
Bus communicationYes; Backplane bus
Vehicle communication according to IEC 61851Yes; Mode 4
Alarms
Diagnostic alarmYes
Diagnoses
Monitoring the supply voltageNo; Supply voltage diagnostics
Wire breakNo
Short-circuitNo
Diagnostics indication LED
ERROR LEDNo
Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED
Channel status displayYes; green LED
for module diagnosticsYes; green/red DIAG LED
Potential separation channels
between the channelsNo; Only one channel is available
between the channels and backplane busYes
Isolation
Isolation tested with707 V DC
Degree of pollution2
EMC
Electrostatic discharge acc. to IEC 61000-4-24 kV contact discharge / 8 kV air discharge
Field-related interference acc. to IEC 61000-4-310 V/m (80 ... 1 000 MHz), 3 V/m (1.4 ... 2.0 GHz), 1 V/m (2.0 ... 2.7 GHz)
Conducted interference due to burst acc. to IEC 61000-4-42 kV signal lines
Conducted interference due to surge acc. to IEC 61000-4-5On DC supply lines: 0.5 kV symmetrical and asymmetrical
Conducted interference due to high-frequency radiation acc. to IEC 61000-4-610 V (0.15 ... 80 MHz)
Degree and class of protection
IP degree of protectionIP20
Standards, approvals, certificates
Certificate of suitabilityCE / RCM / EAC / UL / KC
Ambient temperature during operation
min.-30 °C
max.60 °C
horizontal installation, min.-30 °C
horizontal installation, max.60 °C
vertical installation, min.-30 °C
vertical installation, max.50 °C
Ambient temperature during storage/transportation
Storage, min.-40 °C
Storage, max.70 °C
Transportation, min.-40 °C
Transportation, max.70 °C
Altitude during operation relating to sea level
Installation altitude above sea level, max.2 000 m
Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m)
Relative humidity
Operation, min.5 %
Operation, max.95 %; no condensation
Vibrations
Vibration resistance during operation acc. to IEC 60068-2-610 ... 58 Hz / 0.075 mm, 58 ... 150 Hz / 1 g
Shock testing
Shock resistance acc. to IEC 60068-2-2715 g / 11 ms
Decentralized operation
to SIMATIC S7-1500Yes
Dimensions
Width20 mm
Height73 mm
Depth58 mm
Weights
Weight, approx.51 g
Other
Note:The Tone Mask of the Green Phy defined in DIN 70121 for North America applies
