How can I get a price quote for Siemens 6ES7972-0BB52-0XA0?

You can request a fast quote for Siemens 6ES7972-0BB52-0XA0 from Yılsa Engineering. Reference part number CEY-55221B132E43. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7972-0BB52-0XA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7972-0BB52-0XA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7972-0BB52-0XA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

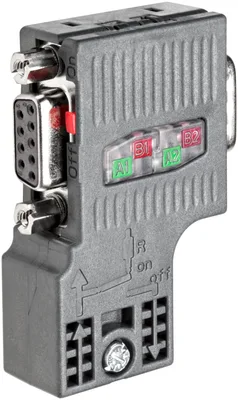

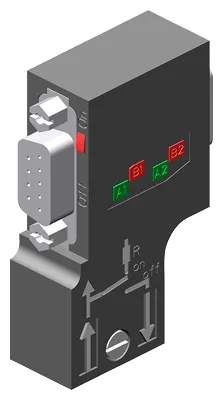

Siemens 6ES7972-0BB52-0XA0

SIMATIC DP, PROFIBUS connection plug up to 12 Mbps; 90° cable outlet; FastConnect insulation displacement connection; terminating resistor with isolating function; with PG socket; dimensions 15.8 x 59 x 35.6 mm (W x H x D)

SiemensMFR # 6ES7972-0BB52-0XA0SKU # CEY-55221B132E43

product brand nameSIMATIC

transfer rate / with PROFIBUS DP9.6 kbit/s ... 12 Mbit/s

for PROFIBUS cables2

material / of the enclosureplastic

locking mechanism designScrewed joint

type of cable outlet90 degree cable outlet

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7972-0BB52-0XA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC

suitability for usefor connecting PROFIBUS stations to the PROFIBUS bus cable

transfer rate

transfer rate / with PROFIBUS DP9.6 kbit/s ... 12 Mbit/s

interfaces

for PROFIBUS cables2

for network components or terminal equipment1

for PROFIBUS cablesIntegrated insulation displacement terminals for 2-core PB FC installation cables

for network components or terminal equipment9-pin sub D connector

type of electrical connection / FastConnectYes

mechanical data

design of terminating resistorResistor combination integrated and connectable via slide switch

material / of the enclosureplastic

locking mechanism designScrewed joint

design, dimensions and weights

type of cable outlet90 degree cable outlet

width15.8 mm

height59 mm

depth35.6 mm

net weight45 g

ambient conditions

during operation-25 ... +60 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

protection class IPIP20

product features, product functions, product components / general

silicon-freeYes

PG connection socketYes

strain reliefYes

standards, specifications, approvals

RoHS conformityYes

UL approvalYes
