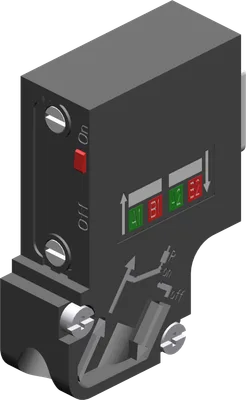

Siemens 6ES7972-0BA61-0XA0

SIMATIC DP, PROFIBUS connection plug up to 12 Mbps; 35° cable outlet; FastConnect insulation displacement connection; terminating resistor with isolating function; without PG socket; dimensions 15.8 x 54 x 39.5 mm (W x H x D)

SiemensMFR # 6ES7972-0BA61-0XA0SKU # CEY-937FC77C8E4B

product brand nameSIMATIC

transfer rate / with PROFIBUS DP9.6 kbit/s ... 12 Mbit/s

for PROFIBUS cables2

material / of the enclosureplastic

locking mechanism designScrewed joint

type of cable outlet35 degree cable outlet

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7972-0BA61-0XA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC

suitability for usefor connecting PROFIBUS stations to the PROFIBUS bus cable

transfer rate

transfer rate / with PROFIBUS DP9.6 kbit/s ... 12 Mbit/s

interfaces

for PROFIBUS cables2

for network components or terminal equipment1

for PROFIBUS cablesIntegrated insulation displacement terminals for 2-core PB FC installation cables

for network components or terminal equipment9-pin sub D connector

type of electrical connection / FastConnectYes

mechanical data

design of terminating resistorResistor combination integrated and connectable via slide switch

material / of the enclosureplastic

locking mechanism designScrewed joint

design, dimensions and weights

type of cable outlet35 degree cable outlet

width15.8 mm

height54 mm

depth39.5 mm

net weight29 g

ambient conditions

during operation-25 ... +60 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

protection class IPIP20

product features, product functions, product components / general

silicon-freeYes

PG connection socketNo

strain reliefYes

standards, specifications, approvals

RoHS conformityYes

UL approvalYes
