Siemens 6ES7922-5BF00-0AC0

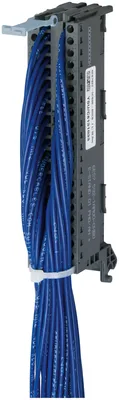

Front connector for SIMATIC S7-1500 40 pole (6ES7592-1AM00-0XB0) with 40 single cores 0.5 mm2 Core type H05V-K Screw version L = 5.0 m

SiemensMFR # 6ES7922-5BF00-0AC0SKU # CEY-937FC77E4DD1

target systemSIMATIC S7-1500

suitability for useDigital I/O modules

input card PLCYes

PLC output cardYes

digital signal transmissionYes

analog signal transmissionNo

Have questions?Chat on WhatsApp

About This Product

Front connector for SIMATIC S7-1500 40 pole (6ES7592-1AM00-0XB0) with 40 single cores 0.5 mm2 Core type H05V-K Screw version L = 5.0 m

Siemens 6ES7922-5BF00-0AC0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

target systemSIMATIC S7-1500

suitability for useDigital I/O modules

input card PLCYes

PLC output cardYes

digital signal transmissionYes

analog signal transmissionNo

product brand nameSIMATIC Top connect

product type designationFlexible connection

product designationFront connector with single cores

electrical data

rated value24 V

maximum30 V

continuous current / with simultaneous load on all cores / at DC / maximum permissible1.5 A

in the fieldother

on enclosureScrew-type terminal

connection method

connector type6ES7592-1AM00-0XB0

type of connecting terminalScrew-type terminal

wire length5 m

number of channels40

number of poles40; of the front connector

marking / of coresNumber consecutively from 1 to 40 in white adapter contact = core number

standards, specifications, approvals

certificate of suitability / cULus approvalNo

ambient conditions

during operation0 ... 60 °C

during storage-30 ... +70 °C

mechanical data

design of cableH05V-K

material / of the connection cable sheathPVC

color / of cable sheathblue

RAL color numberRAL 5010

conductor cross section / rated value0.5 mm²

outer diameter / of cable sheath2.2 mm; of the cable

net weight2.1 kg

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

marketing textThe pre-assembled 40-pole front connector with 40 single wires of type H05V-K, conductor cross-section 0.5qmm, with a length of 5.0m in screw version is intended for connection to a digital I/O module of the SIMATIC S7-1500. This is plugged onto the module to be wired instead of the front connector. This allows the signals of the digital I/O module to be easily connected to the elements to be wired via the numbered individual wires.This front connector with single wires is part of the flexible connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to a 50% lower wiring effort, sources of errors in cabling can be significantly reduced.
