How can I get a price quote for Siemens 6ES7655-5DX40-2AA0?

You can request a fast quote for Siemens 6ES7655-5DX40-2AA0 from Yılsa Engineering. Reference part number CEY-8EF3B0386D85. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7655-5DX40-2AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7655-5DX40-2AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7655-5DX40-2AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

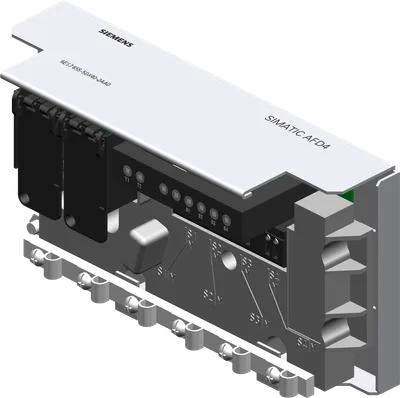

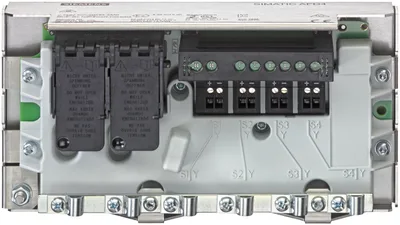

Siemens 6ES7655-5DX40-2AA0

Active field distributor AFD4 for standard mounting rail mounting without enclosure for PROFIBUS PA for foundation Fieldbus H1, 4 short circuit-proof spur lines with bounce protection logic Automatic bus termination for line and ring topology for extended temperature range Degree of protection IP20

SiemensMFR # 6ES7655-5DX40-2AA0SKU # CEY-8EF3B0386D85

Repeater functionNo

permissible range, lower limit (DC)16 V

permissible range, upper limit (DC)32 V

Power loss, typ.384 mW

Power loss, max.3.2 W

Transmission rate, max.31.25 kbit/s

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7655-5DX40-2AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Product function

Repeater functionNo

Supply voltage

permissible range, lower limit (DC)16 V

permissible range, upper limit (DC)32 V

Input current

Current consumption (in no-load operation), typ.24 mA; 54 mA at the end of the cable

Power loss

Power loss, typ.384 mW

Power loss, max.3.2 W

PROFIBUS PA

Transmission rate, max.31.25 kbit/s

Protocols

PROFIBUS PAYes

FOUNDATION Fieldbus H1Yes

Interrupts/diagnostics/status information

Status indicatorYes

AlarmsNo

Diagnostics functionYes

Diagnostics indication LED

Main line statusYes

Spur line status/faultYes

automatic bus terminationYes

Potential separation

between main line and spur linesNo

Degree and class of protection

IP degree of protectionIP20

Use in hazardous areas

ATEX Zone 1No

ATEX Zone 21No

ATEX Zone 2Yes

ATEX Zone 22Yes

FM Class I Zone 1No

FM Class I Zone 2, Division 2Yes

Ambient temperature during operation

min.-40 °C

max.70 °C

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Main line

Number of main lines2

Design of terminalsScrew terminal block

Type of cableType A

Conductor cross-section, min.0.2 mm²

Conductor cross-section, max.2.5 mm²

automatic bus terminationYes

permissible main line current1 A

Spur line

Number of spur lines4

Type of cableType A

Conductor cross-section, min.0.2 mm²

Conductor cross-section, max.2.5 mm²

Number of connectable field devices4

total current output to field devices, max.240 mA

Current limitation per field device, max.60 mA

Short-circuit current (test current); max.6 mA

intrinsically safe according to FISCO modelNo

Debounce logicYes

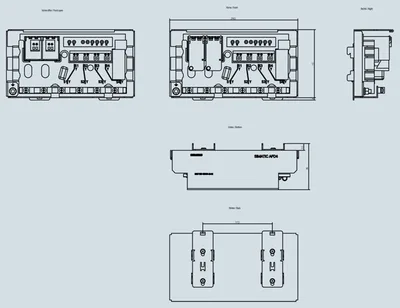

Dimensions

Width220 mm

Height120 mm

Depth83 mm

Weights

Weight, approx.1 000 g
