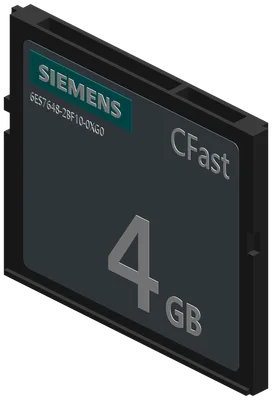

Siemens 6ES7648-2BF10-0XG0

SIMATIC CFast memory card, 4 GB, for IPCs with corresponding slot, scope of supply: 1 CFast 4 GB

SiemensMFR # 6ES7648-2BF10-0XG0SKU # CEY-8EF3B038690C

Product type designationCFast memory card

Type of supply voltageDC

Rated value (DC)3.3 V; ±5 %

Active power input, typ.0.7 W; Inactive 0.3 W

Type of memoryCFast Type I

DesignSLC NAND flash

Have questions?Chat on WhatsApp

About This Product

SIMATIC CFast memory card, 4 GB, for IPCs with corresponding slot, scope of supply: 1 CFast 4 GB

Siemens 6ES7648-2BF10-0XG0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationCFast memory card

Supply voltage

Type of supply voltageDC

Rated value (DC)3.3 V; ±5 %

Power

Active power input, typ.0.7 W; Inactive 0.3 W

Storage

Type of memoryCFast Type I

DesignSLC NAND flash

Memory size4 Gbyte; 1 year (data retention)

Speed classWrite speed: up to 60 MB/s (UDMA6), read speed: up to 100 MB/s (UDMA6)

SLC flash write cycles4.5; TB; number of write cycles determines the lifetime - with flash mass storage devices, the maximum number of possible write cycles is limited due to the physical properties of the flash cells. The intelligent data management of the flash controller ensures that the write cycle count of the mass storage device far surpasses the write cycles of a single flash memory cell. To ensure overall performance, it is recommended not use the memory area completely.

Standards, approvals, certificates

CE markYes

RoHS conformityYes

Ambient temperature during operation

min.-40 °C; Any mounting angle

max.85 °C; Any mounting angle

Ambient temperature during storage/transportation

min.-50 °C

max.100 °C

Relative humidity

Operation, max.85 %

Condensation permissibleNo
